08317321000
KJ4-M12KN30-NA
Inductive sensor NAMUR
Name: | KJ4-M12KN30-NA |
Order number: | 08317321000 |
Matchcode: | 9932-1000 |
Switching distance: | 4 mm |
Mounting: | non shielded |
Signal Type: | Namur |
Connection: | Cable |
Connection diagramm: | |

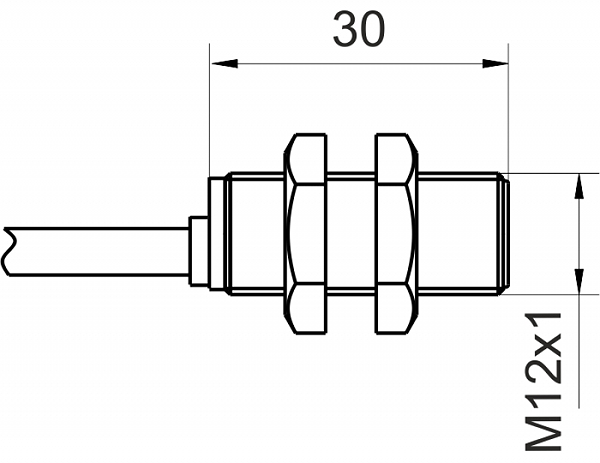

Dimension (in mm): | fine-pitch thread M12 x 30 |
Operating voltage: | 6 - 12 V DC |
Max. ripple: | ≤ 5 % |
No load current: | ≤ 3,5 mA |
Switching frequency: | 1000 Hz |
Operating temperature: | -25 ° C to 60 ° C |
Temperature drift: | ≤ 10 % |
Repeat accuracy: | ≤ 10 % |
Time delay: | 100 ms |
Short-circuit proof: | yes |
Overload protection: | yes |
Reverse voltage protection: | yes |
Protection category: | IP67 |
EMC-level: | DIN EN 60947-5-6:2000-12 |
Housing material: | Trogamid |
Cable length: | 2 m |
Utilisation category: | DC 13 |
Cable material: | PVC LIYY blau (blue) |
Nominal operating voltage: | 8,2 V DC |
Cable cross: | 2x0.25 mm² |
Load Current OFF: | ca. 0,5 mA |
Load Current ON: | ca. 3,5 mA |
FITT / MTTF acc. to SIEMENS 29500: | 16,88 / 6763y |
Errors and omissions exceptet: |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
