Pulsotronic 08317320500
KJ5-M18MB30-NA
Inductive sensor NAMUR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KJ5-M18MB30-NA |
| Order number: | 08317320500 |
| Matchcode: | 9932-0500 |
| Switching distance: | 5 mm |
| Mounting: | shielded |
| Switch type: | see datasheet |
| Signal Type: | Namur |
| Connection: | Cable |
| Connection diagramm: | |

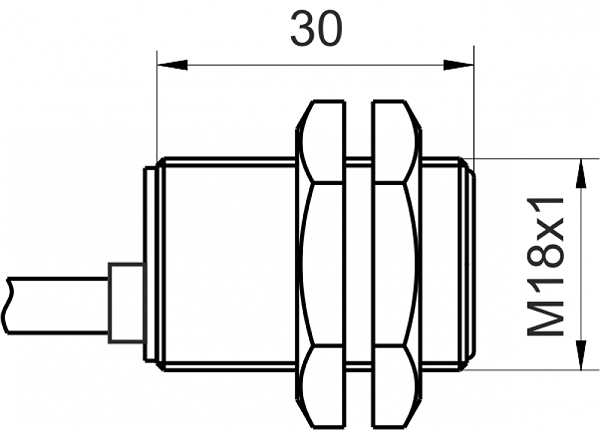

| Dimension (in mm): | fine-pitch thread M18 x 30 |
| Operating voltage: | 6 - 12 V DC |
| Max. ripple: | ≤ 5 % |
| No load current: | ≤ 3,5 mA |
| Switching frequency: | 1000 Hz |
| Operating temperature: | -25 ° C to 60 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Time delay: | 100 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-6:2000-12 |
| Housing material: | Brass, nickel plated |
| Material active face: | PCB |
| Cable length: | 2 m |
| Utilisation category: | DC 13 |
| Cable material: | PVC LIYY blau (blue) |
| Nominal operating voltage: | 8,2 V DC |
| Cable cross: | 2x0.25 mm² |
| Load Current OFF: | ca. 0,5 mA |
| Load Current ON: | ca. 3,5 mA |
| FIT / MTTF acc. to SIEMENS 29500: | 16,88 / 6763y |
| Errors and omissions exceptet: |
