Product
Puls
YR2.DIODE
Request a Quote
Image copyright: Puls

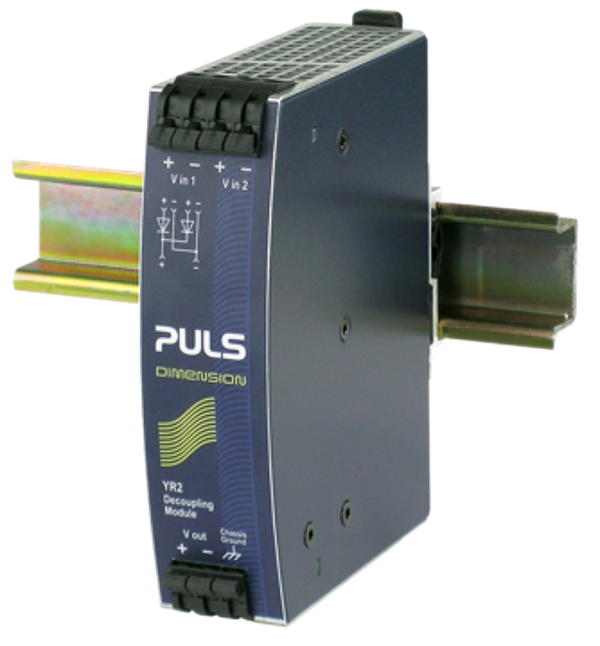

Puls YR2.DIODE
Diode redundancy module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Cost effective solution to build redundant systems. Dual input with single output. Two diodes (common cathode). DC 12-48V (120V) ±25% Wide-range input. Full power between -40°C and +60°C. Width only 32mm. Rugged metal housing. Quick-connect spring-clamp terminals. Easy wiring:. Distribution terminal for negative pole included
Technical parameters
| Input Current: | 2*10A |
| Nominal Current Per Input: | 10A |
| DC-Input Voltage: | DC 12V-48V |
| Voltage Drop: | 800mV (H2) |
| Output Current: | 20A |
| Output Current Range: | 20A (F2) |
| Output Current Short circuit max.: | 25.0A (G2) |
| Size (WxHxD): | 32mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 290g |
| Operat. Temperature Range: | -40°C ... +70°C |
| Derating: | 0.5W/°C at >+60°C |
| Mounting Method: | Din-Rail |
| Power Losses, typ.: | 8.0W |
| Power Losses no Load: | 0W |
| MTBF SN 29500 @ 40°C (h): | 47.000.000h |
| Connection method: | spring clamp terminals |
| F2): | 50% higher currents are allowed up to 5s |
| G2): | Current at voltage <6V |
| H2): | 1+1 -redundancy (=50% of the nominal current) and symmetrical input currents |
