Product
Puls
UF40.241
Request a Quote
Image copyright: Puls

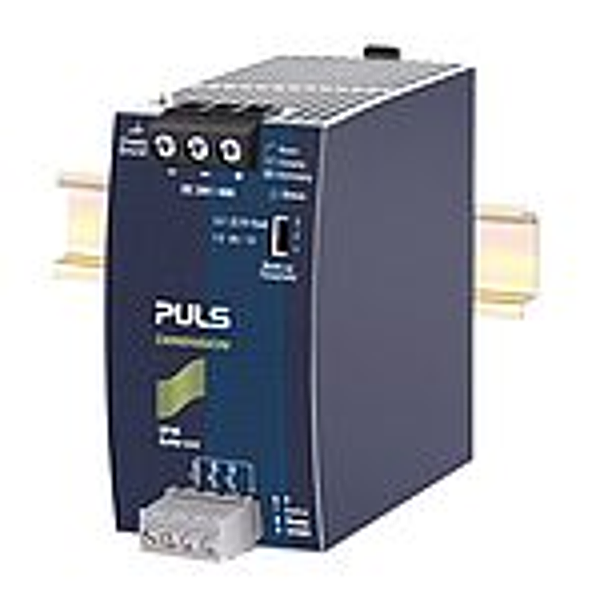

Puls UF40.241
Buffer module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Buffering with electrolytic capacitors instead, of lead acid batteries. Buffering of 24V loads. Minimum hold-up time 0.16s at 40A, 0.2s,, longer hold-up time at lower loads. Clear status indication by status LED, and signaling terminals. Quick-connect spring-clamp terminals
Technical parameters
| DC-Input Voltage: | DC 24V (-20%/+25%) |
| Nominal Voltage: | 24Vdc |
| Storage element: | Electrolytic Capacitors |
| Size (WxHxD): | 64mm x 124mm x 142mm |
| Weight per Piece (excluding packing): | 1040g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Mounting Method: | Din-Rail |
| MTBF SN 29500 @ 40°C (h): | 2 114 000h |
| Connection method: | screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
