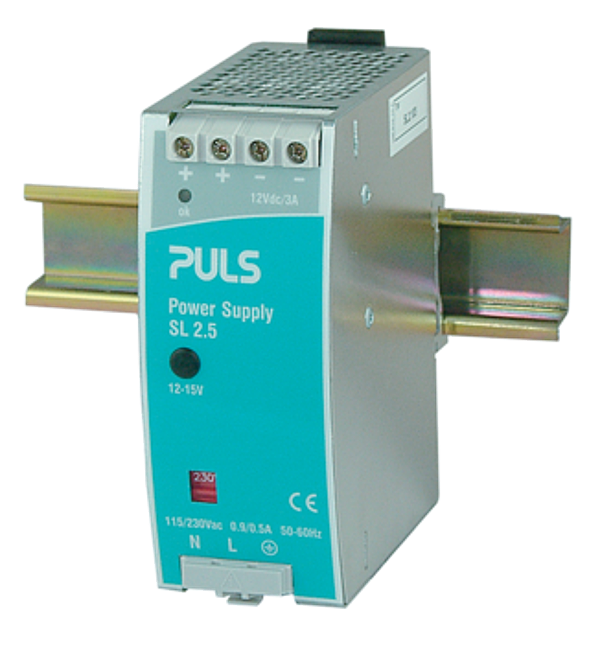

Puls SL2.103
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
115 / 230V Switchable input. Efficiency up to 85%. Full output power between -10 and +60°C
Technical parameters
| AC-Input Voltage: | AC 100-120/200-240V |
| DC-Input Voltage: | DC 300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 3-2.7A |
| Output Current: | 2.7A at 15V 3A at 12V |
| Output Power: | 40W |
| max. Ripple and Noise Voltage: | 25mVpp |
| Size (WxHxD): | 49mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 460g |
| Mounting Method: | DIN-Rail |
| Connection method: | Screw terminals |
