Product
Puls
SL2.100
Request a Quote
Image copyright: Puls

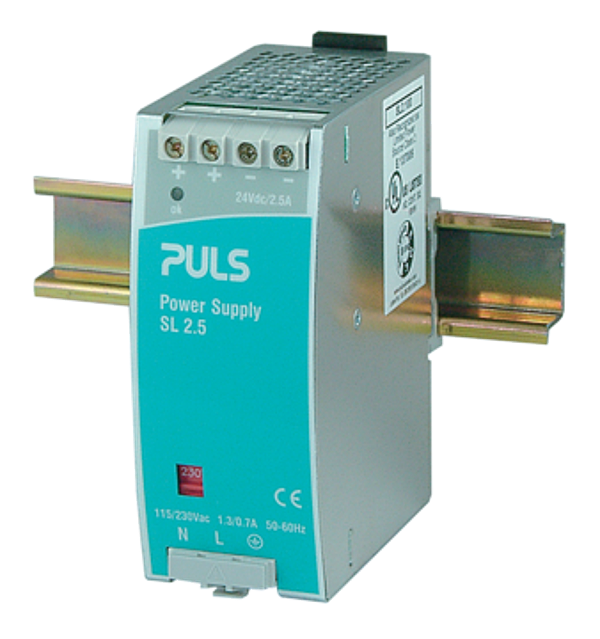

Puls SL2.100
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
115 / 230V Switchable input. Efficiency up to 89%. NEC Class 2 Listed. Full output power between -10 and +60°C
Technical parameters
| AC-Input Voltage: | AC 100-120/200-240V |
| DC-Input Voltage: | DC 300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-24V |
| Output Current Range: | 2.5A |
| Output Current: | 2.5A at 24V |
| Output Power: | 60W |
| max. Ripple and Noise Voltage: | 25mVpp |
| Size (WxHxD): | 49mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 460g |
| Mounting Method: | DIN-Rail |
| Connection method: | Screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
