Product
Puls
QS5.241-60
Request a Quote
Image copyright: Puls

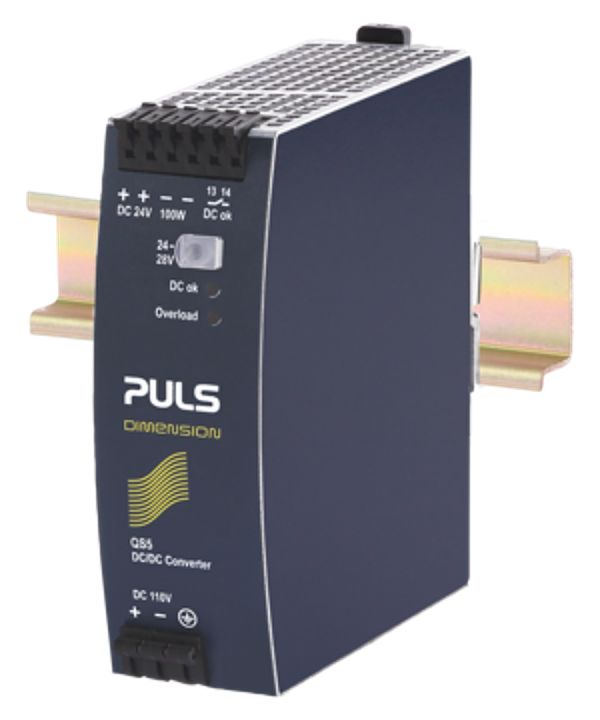

Puls QS5.241-60
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EN 50155 Railway Compliant. Conformal coated PC-boards. Quick-connect spring-clamp terminals. 77-154Vdc Wide-range Input. Width only 40mm. Efficiency up to 91.1%. Excellent partial load efficiency. Minimal inrush current surge. Full power between -25°C and +70°C. DC-OK relay contact. Reverse input polarity protection
Technical parameters
| DC-Input Voltage: | DC 110V (-30%/+40%) |
| Peak turn on current: | typ. 10A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 4.2-3.6A |
| Output Current: | 3.6A at 28V 4.2A at 24V |
| Output Power: | 100W |
| Power Reserves: | 50% Bonus Power |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 40mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 640g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 91.1% |
| Power Losses, typ.: | 9.8W |
| MTBF SN 29500 @ 40°C (h): | 956 000h |
| Connection method: | Spring-clamp terminals |
