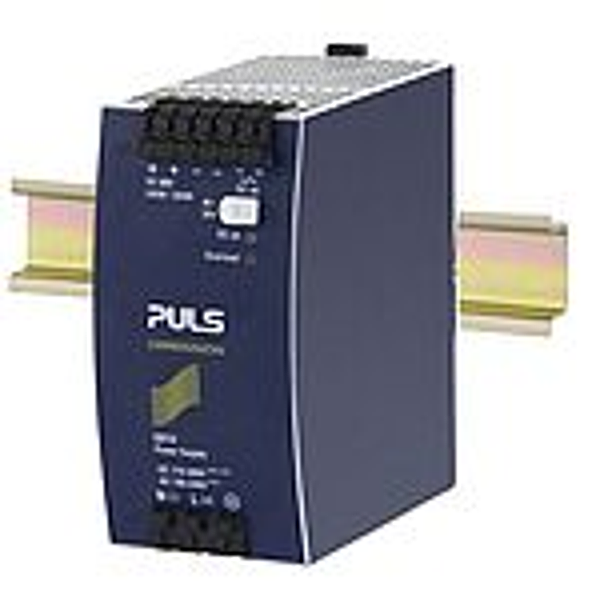

QS10.481-D1
DIN-rail power supplies for 1-phase systems
Wide AC and DC-Input range. Efficiency up to 92%. Negligibly low input inrush current. 50% Power reserves available up to 4s. Full output power between -25 and +60°C. Spring-clamp terminals, DC-OK contact
AC-Input Voltage: | AC 100-240V (± 15%) |
DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
EN61000-3-2(PFC-Norm): | fulfilled |
Harmonic Correction: | active |
Power Factor: | 0.92 |
Input Inrush Current Limitation: | active |
Peak turn on current: | 4A/7A (D1) |
Nominal Voltage: | 48Vdc |
Adjustment Range: | 48-56V |
Output Current Range: | 5-4.3A |
Output Current: | 4.3A at 56V 5A at 48V |
Output Power: | 240W |
Power Reserves: | 50% BonusPower® |
max. Ripple and Noise Voltage: | 100mVpp |
Size (WxHxD): | 60mm x 124mm x 117mm |
Weight per Piece (excluding packing): | 900g |
Operat. Temperature Range: | -25°C ... +70°C |
Derating: | 6W/°C at >+60°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 92.0% |
Power Losses, typ.: | 20.9W |
MTBF SN 29500 @ 40°C (h): | 606.000h |
Connection method: | Spring-clamp terminals |
DC-OK Signal: | yes |
D1): | Peak current at 120Vac/230vac, independent of temperature |
