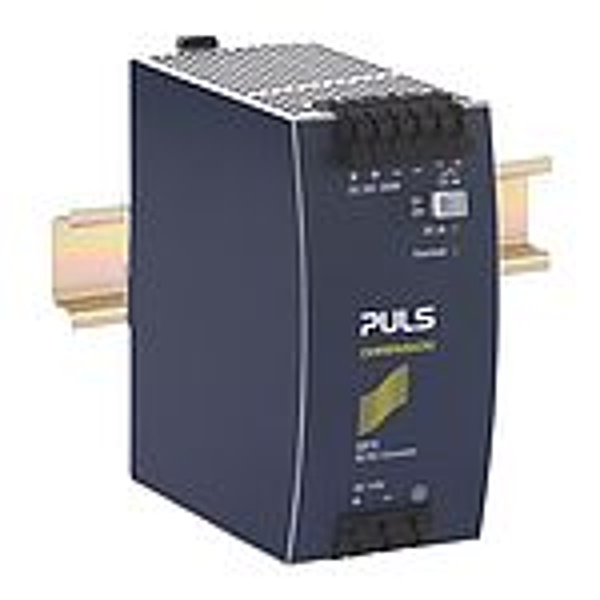

QS10.241-60
DC/DC converter
EN 50155 Railway compliant. Conformal coated PC-boards. Quick-connect spring-clamp terminals. 77-154Vdc wide-range input. Width only 60mm. Efficiency up to 93.0%. Excellent partial load efficiency. Minimal inrush current surge. Full power between -40°C and +70°C. DC-OK relay contact. Reverse input polarity protection
DC-Input Voltage: | DC 110V (-30%/+40%) |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 8.3-7.1A |
Output Current: | 7.1A at 28V 8.3A at 24V |
Output Power: | 200W |
Power Reserves: | 50% Bonus Power for typ. 4s |
max. Ripple and Noise Voltage: | 50mVpp |
Size (WxHxD): | 60mm x 124mm x 117mm |
Weight per Piece (excluding packing): | 920g |
Operat. Temperature Range: | -40°C ... +70°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 93.0% |
Power Losses, typ.: | 15.0W |
MTBF SN 29500 @ 40°C (h): | 688 000h |
Connection method: | Spring-clamp terminals |
