Product
Puls
PISA11.410
Request a Quote

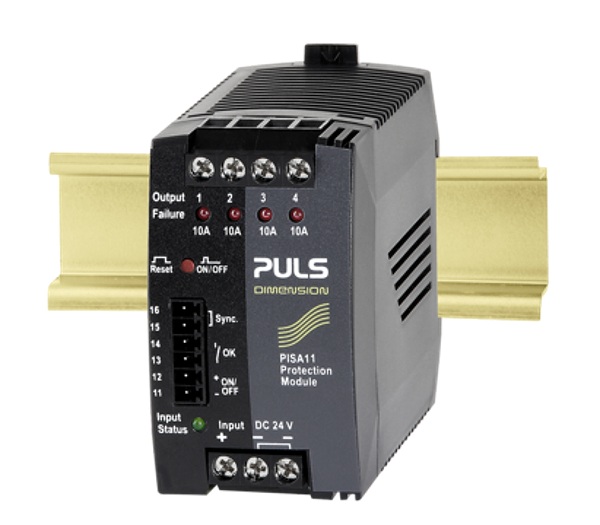

Image copyright: Puls
Puls PISA11.410
Protection module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
One input and four current controlled outputs. Ensures sufficient supply voltage for critical loads even in the event of a fault. Protects small cable sizes against overload. Hassle-free turn-on of loads with large input capacitors. Wide temperature range between -25°C and +70°C. On/Off function of outputs. Compact design, width only 45mm. Remote monitoring and control function
Technical parameters
| DC-Input Voltage: | DC 18V-30V |
| DC Input Current at no load, typ.: | 43mA |
| Required Input Voltage for turning on the outputs, typ: | 21.4Vdc |
| Turn-on Delay of Outputs: | 270ms |
| Input voltage protection level min./max.: | 21.0-21.8Vdc |
| Adjustment Range: | 24-28V |
| Output Current: | 10A , 10A , 10A , 10A |
| Output Current (all 4 outputs together): | 20A |
| Output current limination min./max.: | 20.5/30.0A |
| Shutdown-times at short circuit, typ: | 8.0ms |
| Voltage drop, typ.: | 197: |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 120g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Mounting Method: | Din-Rail |
| Power Losses, typ.: | 4.9W |
| Power Losses no Load: | 1.0W |
| MTBF SN 29500 @ 40°C (h): | 1.296.000h |
| Connection method: | Screw Terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
