Product
Puls
PIRD20.241
Request a Quote
Image copyright: Puls

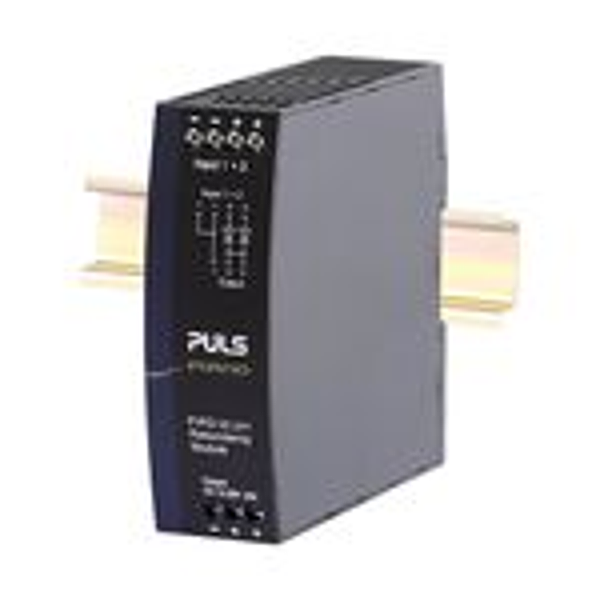

Puls PIRD20.241
Diode redundancy module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Cost effective solution to build redundant systems. Dual input with single output. Two diodes (common cathode). DC 12-28V ±25% Wide-range input. Full power between -40°C and +55°C. Width only 39mm. Large screw terminals. Easy wiring: distribution terminal for negative pole included
Technical parameters
| Input Current: | 2*10A |
| Nominal Current Per Input: | 10A |
| DC-Input Voltage: | DC 12V-28V (± 25%) |
| Voltage Drop: | 460mV (H2) |
| Output Current: | 20A |
| Output Current Range: | 0-20A |
| Output Current Short circuit max.: | 26.0A |
| Size (WxHxD): | 39mm x 124mm x 124mm |
| Weight per Piece (excluding packing): | 280g |
| Operat. Temperature Range: | -40°C ... +70°C |
| Derating: | 0.5W/°C at >+55°C |
| Mounting Method: | Din-Rail |
| Power Losses, typ.: | 4.6W |
| Power Losses no Load: | 0W |
| MTBF SN 29500 @ 40°C (h): | 20 310 000h |
| Connection method: | screw terminals |
| H2): | 1+1 -redundancy (=50% of the nominal current) and symmetrical input currents |
