Puls
PIC240.241C
Request a Quote
Image copyright: Puls

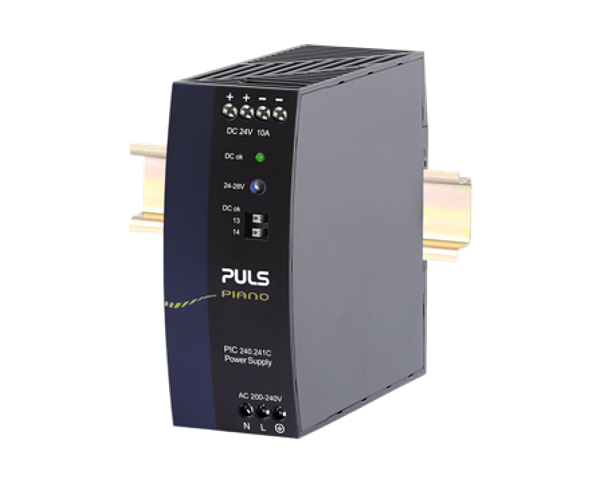

Puls PIC240.241C
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Cost optimized power supply without compromizing quality or reliability. 200-240V Regional input voltage, efficiency up to 91,4%. DC-OK relay contact included. Rugged housing made of a high-grade, reinforced molded material. Full output power between -10 and +55°C. Extraordinarily compact, width only 49mm
Technical parameters
| AC-Input Voltage: | AC 200-240V (± 10%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | not fulfilled |
| Power Factor: | 0.52 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 48A (M1) |
| External Input Fuse Recommendation: | B - 16A / C - 10A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 28V 10A at 24V |
| Output Power: | 240W |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 49mm x 124mm x 124mm |
| Weight per Piece (excluding packing): | 550g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 6W/°C at >+55°C (W1) |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 91.4% |
| Power Losses, typ.: | 22.6W |
| MTBF SN 29500 @ 40°C (h): | 791.000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
| M1): | Peak current at 230Vac, ambient temperature +40°C and cold start |
| W1): | Derating over +55°C |
