Product
Puls
PIC120.242C
Request a Quote
Image copyright: Puls

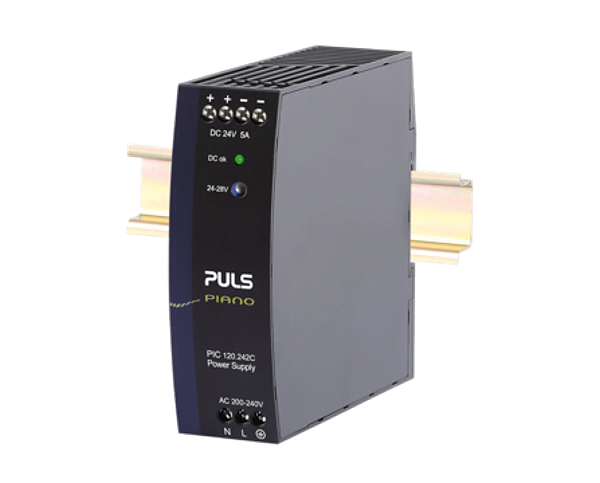

Puls PIC120.242C
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Cost optimized power supply without compromizing quality or reliability. 200-240V Regional input voltage, efficiency up to 90,5%. Rugged housing made of a high-grade, reinforced molded material. Full output power between -10 and +55°C. Extraordinarely compact, width only 39mm
Technical parameters
| AC-Input Voltage: | AC 200-240V (± 10%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | not fulfilled |
| Power Factor: | 0.54 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 28A (M1) |
| External Input Fuse Recommendation: | min. B - 10A / C - 6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 5-4.3A |
| Output Current: | 4.3A at 28V 5A at 24V |
| Output Power: | 120W |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 39mm x 124mm x 124mm |
| Weight per Piece (excluding packing): | 350g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 3W/°C at +55 to +70°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 90.5% |
| Power Losses, typ.: | 12.6W |
| MTBF SN 29500 @ 40°C (h): | 1.720.000h |
| Connection method: | Screw terminals |
| M1): | Peak current at 230Vac, ambient temperature +40°C and cold start |
