Product
Puls
MLY02.100
Request a Quote
Image copyright: Puls

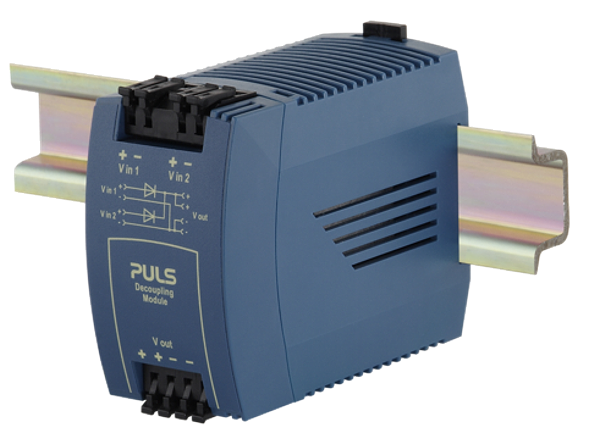

Puls MLY02.100
Diode redundancy module
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Redundancy module for building redundant systems. Two 5A inputs, one 10A output. Only 0.9V voltage drop between input and output under full load. Full output current between -40 and +60°C. Quick-connect spring-clamp terminals. Adapter for Wall Mounting includet
Technical parameters
| Input Current: | 2*5A |
| Nominal Current Per Input: | 5A |
| DC-Input Voltage: | DC 12V-48V (± 25%) |
| Voltage Drop: | 800mV (H2) |
| Output Current: | 10A |
| Output Current Range: | 10A (F2) |
| Output Current Short circuit max.: | 16.0A (G2) |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 140g |
| Operat. Temperature Range: | -40°C ... +70°C |
| Derating: | 0.25W/°C at >+60°C |
| Mounting Method: | Din-Rail |
| Power Losses, typ.: | 4.0W |
| Power Losses no Load: | 0W |
| MTBF SN 29500 @ 40°C (h): | 58.000.000h |
| Connection method: | spring clamb terminals |
| F2): | 50% higher currents are allowed up to 5s |
| G2): | Current at voltage <6V |
| H2): | 1+1 -redundancy (=50% of the nominal current) and symmetrical input currents |
