Product
Puls
ML60.242
Request a Quote
Image copyright: Puls

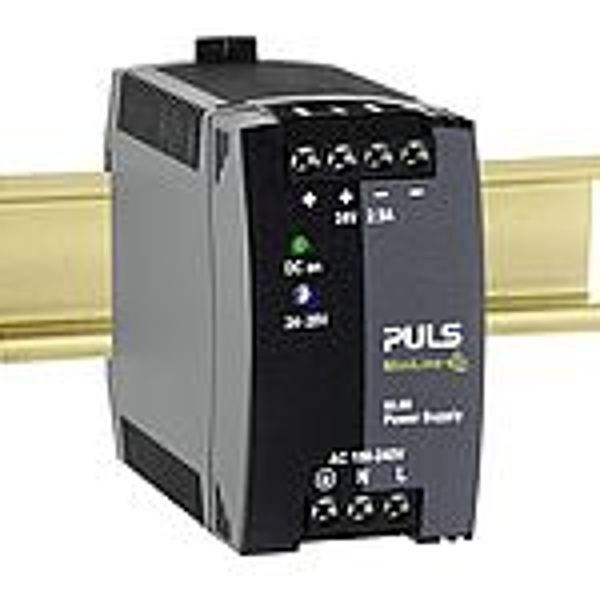

Puls ML60.242
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
100-240V Wide-range input. NEC Class2 compliant. Adjustable output voltage. Efficiency up to 90.4%. Low no-load losses and excellent partial-load efficiency. Compact design, width only 45mm. Electronic inrush current limitation. Operation down to -40°C. Full output power between -25°C and +60°C. Large international approval package
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Power Factor: | 0.44 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 6A/6A (J1) |
| External Input Fuse Recommendation: | min. B-6A / C-3A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 2.5-2.1A |
| Output Current: | 2.1A at 28V 2.5A at 24V |
| Output Power: | 60W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 250g |
| Operat. Temperature Range: | -40°C ... +70°C |
| Derating: | 1.5W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 90.4% |
| Power Losses, typ.: | 7.8W,6,4W |
| MTBF SN 29500 @ 40°C (h): | 1.866.000h |
| Connection method: | Screw terminals |
| J1): | 3x400V, 50Hz/ 3x480Vac, 60Hz, independent of temperature |
