Product
Puls
ML60.121
Request a Quote
Image copyright: Puls

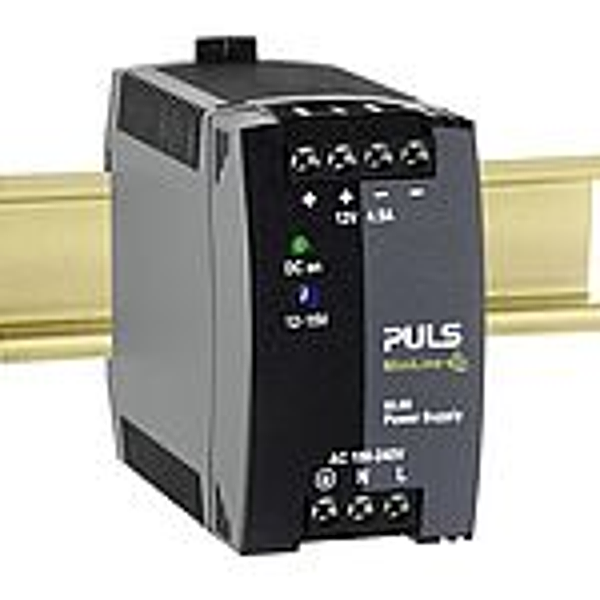

Puls ML60.121
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
100-240V Wide-range input. NEC Class2 compliant. Adjustable output voltage. Efficiency up to 87.2%. Low no-load losses and excellent partial-load efficiency. Compact design, width only 45mm. Full power between -10°C and +60°C. Large international approval package
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Power Factor: | 0.5 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 16A/32A (B1) |
| External Input Fuse Recommendation: | min. B-10A / C-6A |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 4.5-3.6A |
| Output Current: | 3.6A at 15V 4.5A at 12V |
| Output Power: | 54W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 250g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 1.4W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 87.2% |
| Power Losses, typ.: | 7.9W |
| MTBF SN 29500 @ 40°C (h): | 1.690.000h |
| Connection method: | Screw terminals |
| B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
