Product
Puls
ML30.106
Request a Quote
Image copyright: Puls

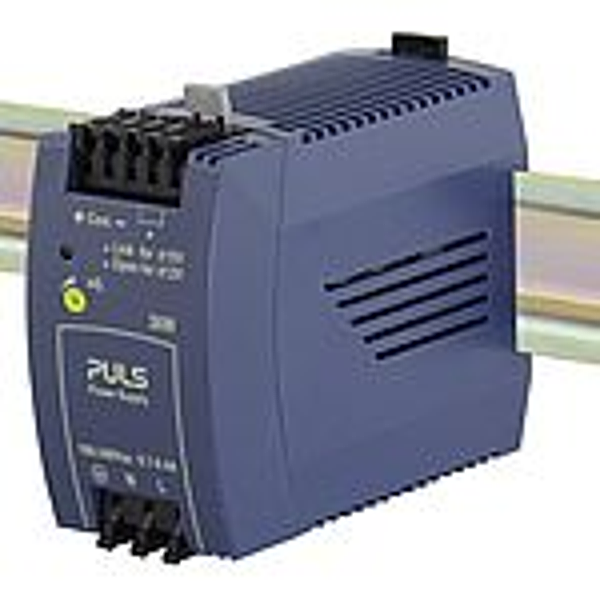

Puls ML30.106
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
100-240V Wide-range input. Efficiency up to 86%. Dual output. NEC Class 2 Listed. Full output power between -10 and +60°C. Quick-connect spring-clamp terminals Adapter for Wall Mounting includet. Output voltage adjustable to DC ±12V (without jumper) or DC ±15V (with jumper)
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
| Power Factor: | 0.53 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 17A/35A (B1) |
| External Input Fuse Recommendation: | min. B-10A / C-6A |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 2.5-2.5A (A1) |
| Output Current: | 2.5A at 15V (A1) 2.5A at 12V |
| Output Power: | 36W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 240g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 1W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 86.0% |
| Power Losses, typ.: | 5.9W |
| MTBF SN 29500 @ 40°C (h): | 600.000h |
| Connection method: | Spring-clamp terminals |
| A1): | Both outputs can be flexibly loaded to this power as long as the output power of 36W retaining inter less current at lower load output should be at least 5% of the more highly loaded output |
| B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
