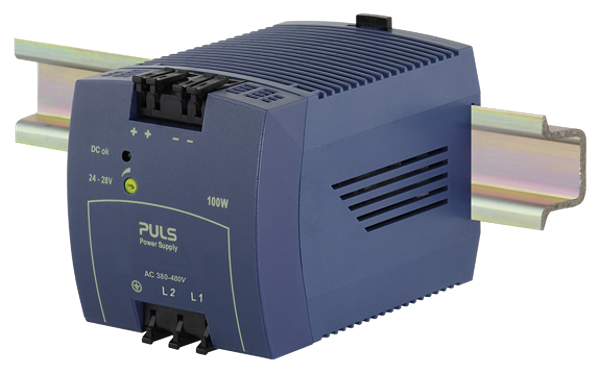

ML100.200
DIN-rail power supplies for 3-phase systems
380-480V 2-Phase input. Efficiency up to 89,5%. No Neutral wire required. Full output power between -10 and +60°C. Quick-connect spring-clamp terminals
AC-Input Voltage: | AC 380-480V (± 15%) |
DC-Input Voltage: | |
EN61000-3-2(PFC-Norm): | fulfilled |
Power Factor: | 0.6 |
Input Inrush Current Limitation: | NTC |
Peak turn on current: | 30A/36A (B1) |
External Input Fuse Recommendation: | min. B-10A / C-6A |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 4.2-3.6A |
Output Current: | 3.6A at 28V 4.2A at 24V |
Output Power: | 100W |
max. Ripple and Noise Voltage: | 50mVpp |
Size (WxHxD): | 73mm x 75mm x 103mm |
Weight per Piece (excluding packing): | 360g |
Operat. Temperature Range: | -10°C ... +70°C |
Derating: | 2.5W/°C at >+60°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 89.5% |
Power Losses, typ.: | 11.7W |
MTBF SN 29500 @ 40°C (h): | 1.594.000h |
Connection method: | Spring-clamp terminals |
B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
