Product
Puls
CS5.243
Request a Quote

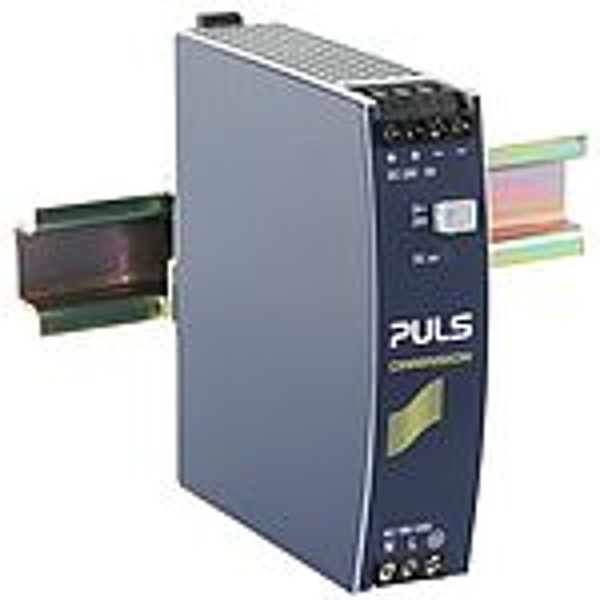

Image copyright: Puls
Puls CS5.243
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-120V single-phase input. Width only 32mm. Efficiency up to 90.0%. Easy fuse breaking due to high overload peak current. 20% Output power reserves. Full output power between -10°C and +60°C
Technical parameters
| AC-Input Voltage: | AC 100-120V (± 10%) |
| DC-Input Voltage: | |
| Power Factor: | 0.59 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 45A |
| External Input Fuse Recommendation: | min. B-16A / C-10A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 5-4.3A |
| Output Current: | 4.3A at 28V 5A at 24V |
| Output Power: | 120W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 32mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 500g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 3W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 90.0% |
| Power Losses, typ.: | 13.5W |
| MTBF SN 29500 @ 40°C (h): | 740.000h |
| Connection method: | Screw terminals |
| L1): | Peak current at 120Vac, ambient temperature +40°C and cold start |
