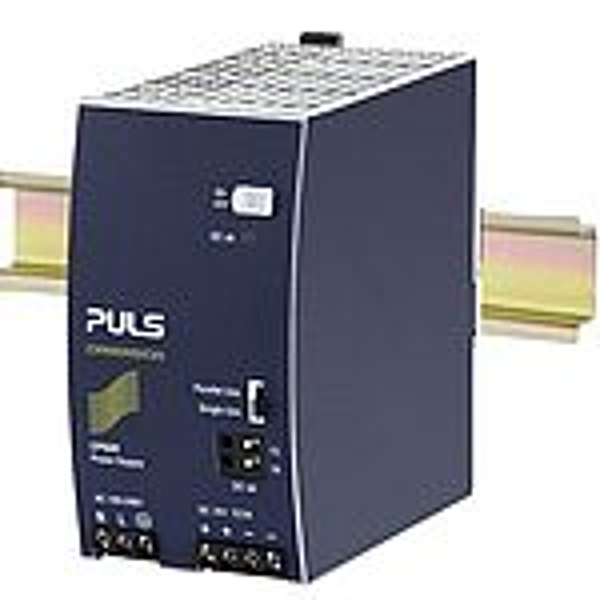

Puls CPS20.361
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range Input. Width only 65mm. Efficiency up to 94.3%. ATEX and IECEx Approved. Excellent Partial Load Efficiency. 20% Output Power Reserves. Safe Hiccup. PLUS. Overload Mode. Easy Fuse Breaking due to High Overload Current. Active Power Factor Correction (PFC). Minimal Inrush Current Surge. Full Power Between -25°C and +60°C. DC-OK Relay Contact. Current Sharing Feature for Parallel Use
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.95 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 9A/7A (D1) |
| External Input Fuse Recommendation: | min. B-10A / C-10A |
| Nominal Voltage: | 36Vdc |
| Adjustment Range: | 36-42V |
| Output Current Range: | 13.3-11.4A |
| Output Current: | 11.4A at 42V 13.3A at 36V |
| Output Power: | 480W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 65mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 1000g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 12W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.3% |
| Power Losses, typ.: | 29.0W |
| MTBF SN 29500 @ 40°C (h): | 537.000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
| D1): | Peak current at 120Vac/230vac, independent of temperature |
