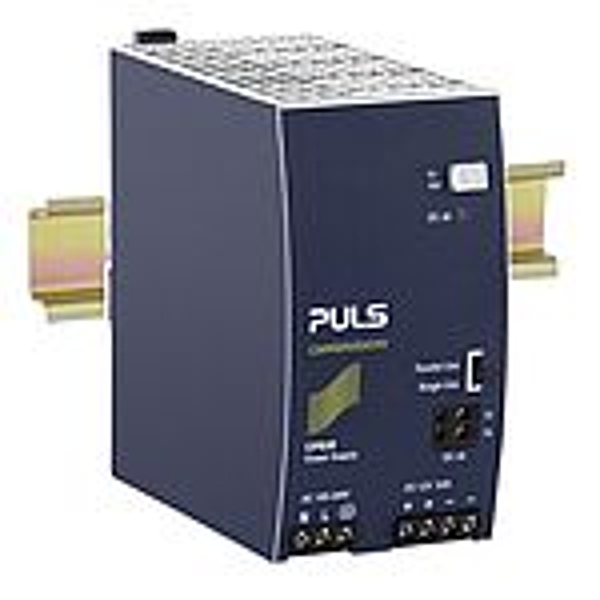

Puls CPS20.121
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range input. Width only 65mm. Efficiency up to 92.6%. ATEX and IECEx approved. Excellent partial load efficiency. Safe Hiccup. PLUS, overload mode. Easy fuse breaking due to high overload peak current. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact. Current sharing feature for parallel use
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.95 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 9A/7A (D1) |
| External Input Fuse Recommendation: | B - 10A / C - 10A |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 30-27A |
| Output Current: | 27A at 15V 30A at 12V |
| Output Power: | 405W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 65mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 1000g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 0,75W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 92.6% |
| Power Losses, typ.: | 28,8W |
| MTBF SN 29500 @ 40°C (h): | 554.000h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
| D1): | Peak current at 120Vac/230vac, independent of temperature |
