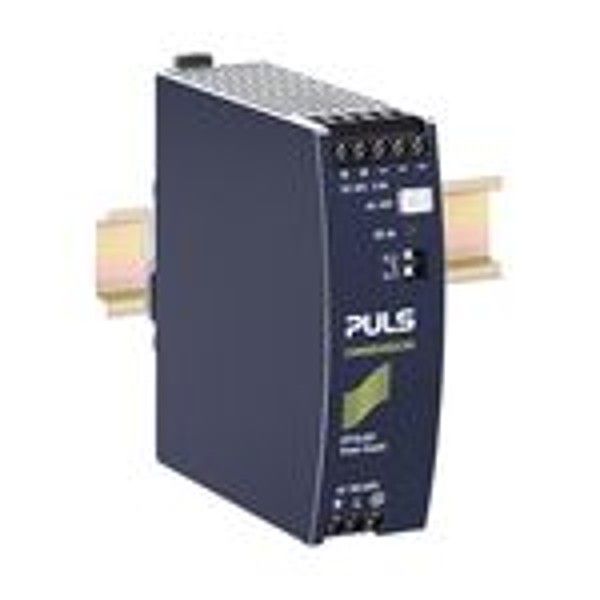

Puls CP10.481
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC 100-240V Wide-range input. Width only 39mm. 10% (5.4A) continuous current up to +60°C. 20% (6A) continuous current up to +45°C. Efficiency up to 95.5%. Excellent partial load efficiency. Safe Hiccup. PLUS, overload mode. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact
Technical parameters
| AC-Input Voltage: | AC 100-240V (± 10%) |
| DC-Input Voltage: | DC 110V-150V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.98 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 6A/9A |
| External Input Fuse Recommendation: | min B-6A / C-6A |
| Nominal Voltage: | 48Vdc |
| Adjustment Range: | 48-56V |
| Output Current Range: | 5.4-4.6A |
| Output Current: | 4.6A at 56V 5.4A at 48V |
| Output Power: | 259W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 39mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 600g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 6.5W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 95.5% |
| Power Losses, typ.: | 12.3W |
| MTBF SN 29500 @ 40°C (h): | h |
| Connection method: | Screw terminals |
| DC-OK Signal: | yes |
