Product
Puls
CP10.241-M1
Request a Quote
Image copyright: Puls

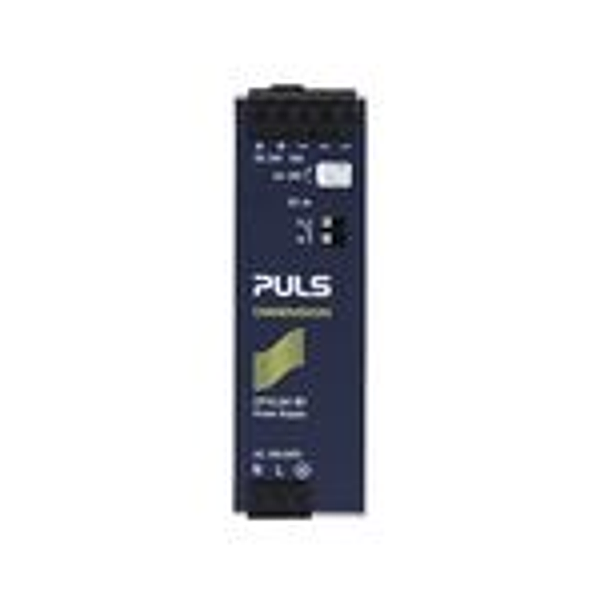

Puls CP10.241-M1
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
2MOPP Safety approved for medical applications according to IEC 60601-1, 3, rd, edition. EMC tested for medical use according to IEC 60601-1-2, 4, th. Quick-connect spring-clamp terminals. AC 100-240V Wide-range input. Width only 39mm. Efficiency up to 95.2%, excellent partial load efficiency. 20% Output power reserves. Safe Hiccup. PLUS, overload mode. Easy fuse breaking due to high overload peak current. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact
Technical parameters
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-150V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.97 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 6A/9A (B1) |
| External Input Fuse Recommendation: | min. B - 6A / C - 6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 28V 10A at 24V |
| Output Power: | 240W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 39mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 620g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 95.2% |
| Power Losses, typ.: | 12.1W |
| MTBF SN 29500 @ 40°C (h): | 661.000h |
| Connection method: | Spring-clamp Terminals |
| DC-OK Signal: | yes |
| B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
