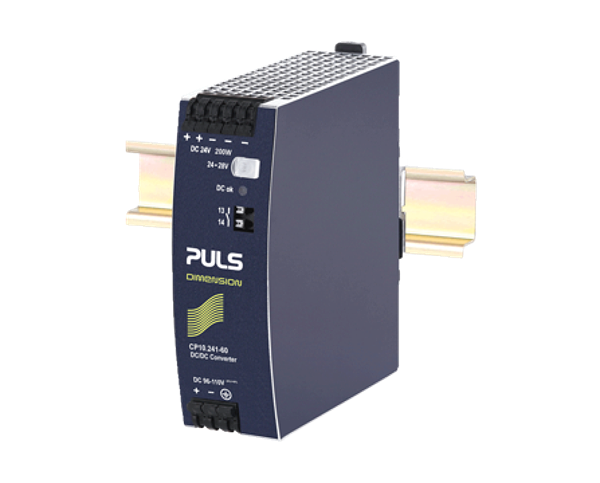

CP10.241-60
DC/DC converter
EN 50155 Railway compliant. Conformal coated PC-boards. Quick-connect spring-clamp terminals. 67-154Vdc wide-range input. Width only 39mm. Efficiency up to 94.5%. Excellent partial load efficiency. Minimal inrush current surge. Full output power between -40°C and +70°C. DC-OK relay contact. Reverse input polarity protected
DC-Input Voltage: | DC 96V-110V (-30%/+40%) |
EN61000-3-2(PFC-Norm): | fulfilled |
Input Inrush Current Limitation: | active |
Peak turn on current: | 2.5A |
External Input Fuse Recommendation: | min. B - 6A / C - 4A |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 8.3-7.1A |
Output Current: | 7.1A at 28V 8.3A at 24V |
Output Power: | 200W |
Power Reserves: | 20% |
max. Ripple and Noise Voltage: | 50mVpp |
Size (WxHxD): | 39mm x 124mm x 117mm |
Weight per Piece (excluding packing): | 620g |
Operat. Temperature Range: | -40°C ... +70°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 94.5% |
Power Losses, typ.: | 11.6W |
Connection method: | Quick-connect Spring-clamp Terminals |
DC-OK Signal: | yes |
