Product
Puls
CD5.241
Request a Quote
Image copyright: Puls

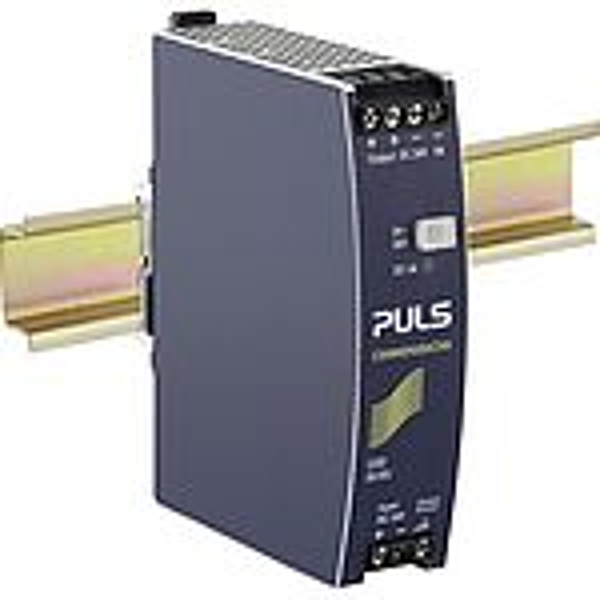

Puls CD5.241
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
24V DC-input. Isolated 24Vdc output. Efficiency up to 90.3%. Width only 32mm. 20% Output power reserves. Full power between -25°C and +60°C. Soft-start function. Minimal inrush current surge. Reverse input polarity protection
Technical parameters
| DC-Input Voltage: | DC 24V (-25%/+35%) |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 5-4.3A |
| Output Current: | 4.3A at 28V 5A at 24V |
| Output Power: | 120W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 32mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 425g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 3W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 90.3% |
| Power Losses, typ.: | 12.9W |
| MTBF SN 29500 @ 40°C (h): | 1.178.000h |
| Connection method: | Screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
