Product
Puls
CD5.121
Request a Quote

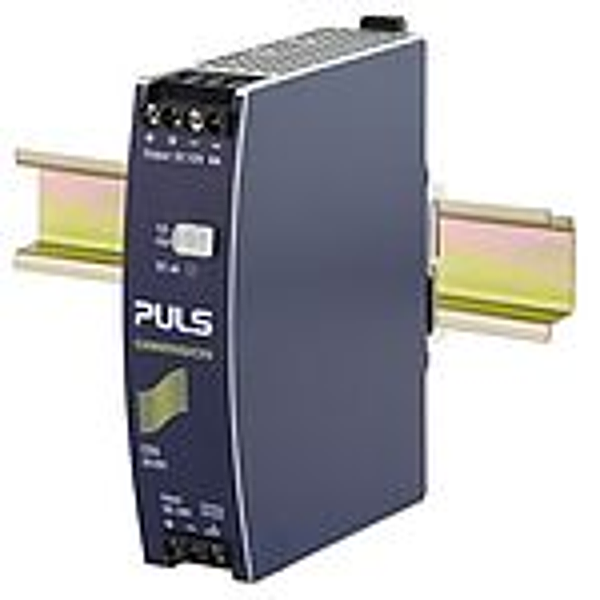

Image copyright: Puls
Puls CD5.121
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
24V DC-input. Isolated 12Vdc output. Efficiency up to 88.2%. Width only 32mm. 20% Output power reserves. Full power between -25°C and +60°C. Soft-start function. Minimal inrush current surge. Reverse input polarity protection
Technical parameters
| DC-Input Voltage: | DC 24V (-25%/+35%) |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 8-6.4A |
| Output Current: | 6.4A at 15V 8A at 12V |
| Output Power: | 96W |
| Power Reserves: | 20% Power Boost |
| max. Ripple and Noise Voltage: | 75mVpp |
| Size (WxHxD): | 32mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 425g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 2.5W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 88.2% |
| Power Losses, typ.: | 12.8W |
| MTBF SN 29500 @ 40°C (h): | 1.161.000h |
| Connection method: | Screw terminals |
