Product
Puls
CD10.241
Request a Quote

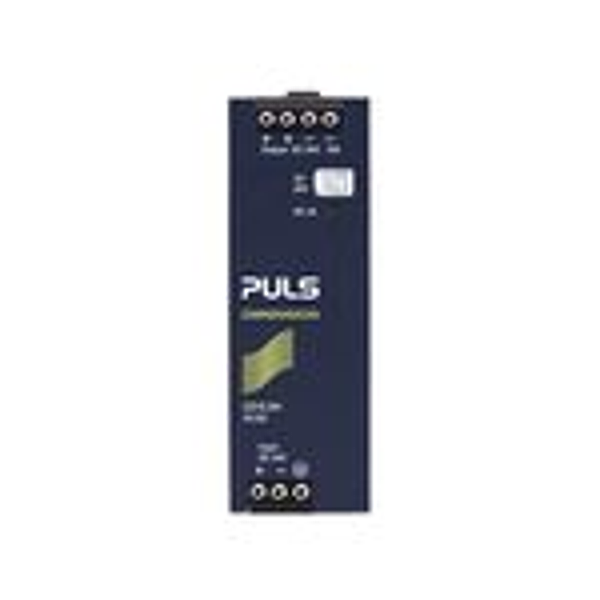

Image copyright: Puls
Puls CD10.241
DC/DC converter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
24V DC-input. Isolated 24Vdc output. Efficiency 94.2%. Width only 42mm. 20% output power reserves. Full power between -25°C and +60°C. Soft-start function. Minimal inrush current surge. Reverse input polarity protection
Technical parameters
| DC-Input Voltage: | DC 24V (-25%/+46%) |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 10-8.6A |
| Output Current: | 8.6A at 28V 10A at 24V |
| Output Power: | 240W |
| Power Reserves: | 20% Power Boost |
| Size (WxHxD): | 42mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 500g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.2% |
| Power Losses, typ.: | 14.8W |
| Connection method: | Screw terminals |
