Product
Pilz
778010
PMUT X1P 24VDC 3n/o 1n/c 5so
Request a Quote
Image copyright: Pilz

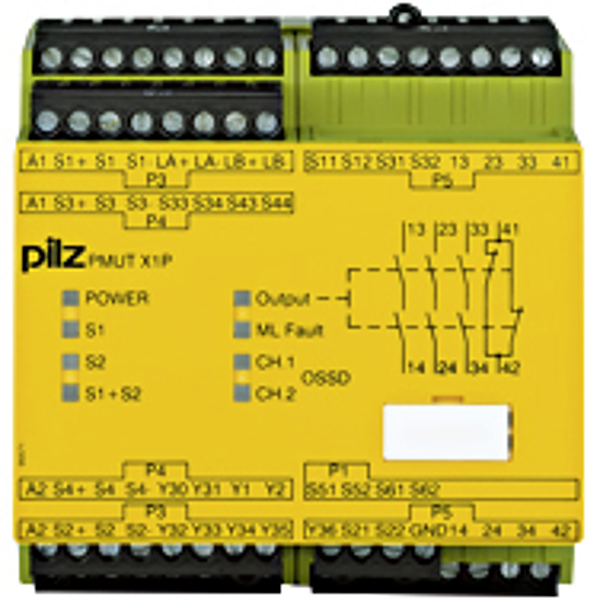

Pilz 778010
PMUT X1P 24VDC 3n/o 1n/c 5so
Safety relay (standalone) Inputs: 2-channel wiring with/without, detection of shorts across contacts 4 muting sensors. Outputs: 3 2 N/O,. 1 N/C, 5 semiconductor. Automatic/monitored start UB 24 V DC, width:. 90 mm, plug-in terminals of screw type Device for the temporary, suspension of safety functions, muting, monitoring of muting lamps and, their automatic switching.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Instantaneous E-STOP monitoring |
| Operating modes:: | Dual-channel, Manual reset, Detection of shorts across contacts, without detection of shorts across contacts |
| Product standard:: | EN 61496-1 |
| Standards:: | EN 60204-1, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | Plug-in |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 3 |
| Number of auxiliary contacts:: | 1 |
| Number of semiconductor outputs:: | 4 |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 5.0 A |
| Voltage at AC15:: | 240 V |
| Max. current at AC15:: | 5.0 A |
| Width dimension:: | 90.0 mm |
| Height dimension:: | 94.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 575 g |
| Net weight:: | 565 g |
| Ambient temperature:: | -10 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
