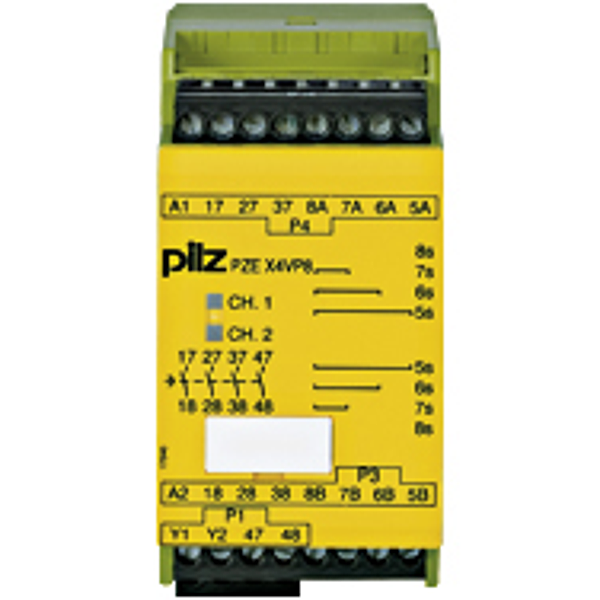

Pilz 777584
PZE X4VP8 24VDC 4n/o
Contact expansion Inputs: Single-channel wiring Outputs: 4 N/O, t = 5, 6, 7, 8 s fixed). UB 24 V DC, width: 45 mm, plug-in terminals, of screw type. Contact block for contact expansion in connection with, safety-related control components.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Delayed contact expansion |
| Operating modes:: | Single-channel, without detection of shorts across contacts |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | Plug-in |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 0 |
| Number of delayed safety contacts:: | 4 |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 94.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 330 g |
| Net weight:: | 320 g |
| Ambient temperature:: | -10 - 55 °C |
