774580

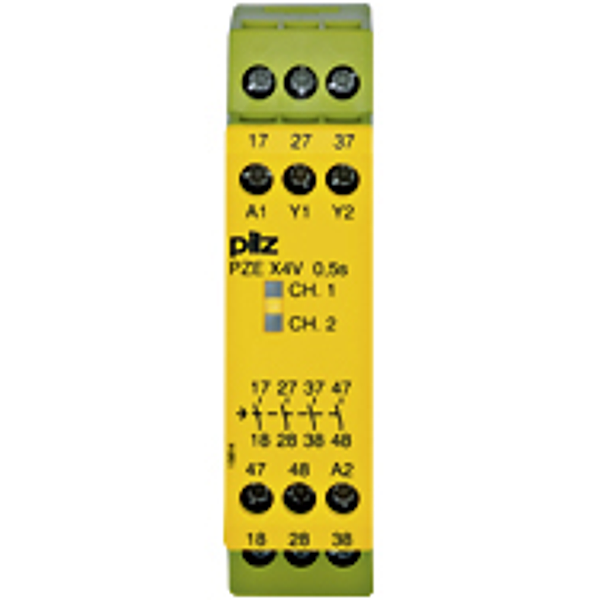

PZE X4V 0,5/24VDC 4n/o fix
Contact expansion Inputs: Single-channel wiring Outputs: 4 N/O. UB 24 V DC, width: 22.5 mm, integral screw terminals, Delay-on, de-energisation contact block for contact expansion in connection with, safety-related control components. Release time 0.5 s fixed.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Delayed contact expansion |
Operating modes:: | Single-channel, without detection of shorts across contacts |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal style:: | fixed |
Terminal type:: | Screw terminal |
Number of instantaneous safety contacts:: | 0 |
Number of delayed safety contacts:: | 4 |
Width dimension:: | 22.5 mm |
Height dimension:: | 87.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 195 g |
Net weight:: | 185 g |
Ambient temperature:: | -10 - 55 °C |
