Product
Pilz
774360
P1HZ X1 24VDC 2n/o
Request a Quote

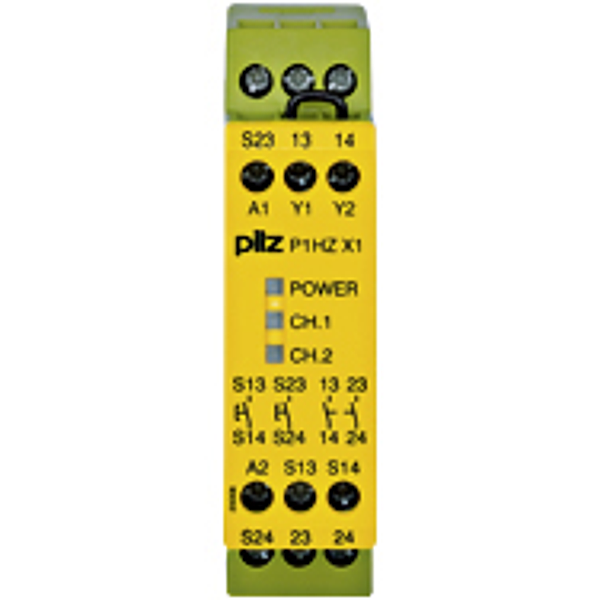

Image copyright: Pilz
Pilz 774360
P1HZ X1 24VDC 2n/o
Safety relay (standalone) Inputs: 1 N/O per pushbutton Outputs:. 2 N/O UB 24 V DC, width: 22.5 mm, integral screw terminals,, two-hand control device, monitoring the simultaneity of a two-hand, pushbutton.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Two-hand monitoring Type III A |
| Standards:: | EN 574 TYP III A, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Operating modes:: | Dual-channel, Detection of shorts across contacts |
| Number of instantaneous safety contacts:: | 2 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 2.5 A |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 205 g |
| Net weight:: | 200 g |
| Ambient temperature:: | -25 - 55 °C |
