Product
Pilz
774330
P2HZ X1 24VAC 3n/o 1n/c
Request a Quote

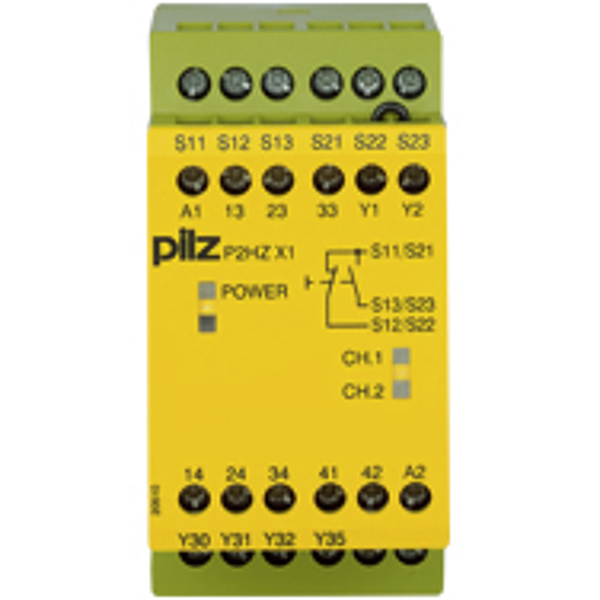

Image copyright: Pilz
Pilz 774330
P2HZ X1 24VAC 3n/o 1n/c
Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs:. 3 N/O, 1 N/C, 2 semiconductor UB 24 V AC, width: 45 mm, integral screw terminals, two-hand control device, monitoring the simultaneity of a two-hand pushbutton.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Two-hand monitoring Type III C |
| Standards:: | EN 574 TYP III C, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Operating modes:: | Dual-channel, Detection of shorts across contacts |
| Number of instantaneous safety contacts:: | 3 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | AC |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 1.5 A |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 390 g |
| Net weight:: | 380 g |
| Ambient temperature:: | -25 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
