774051

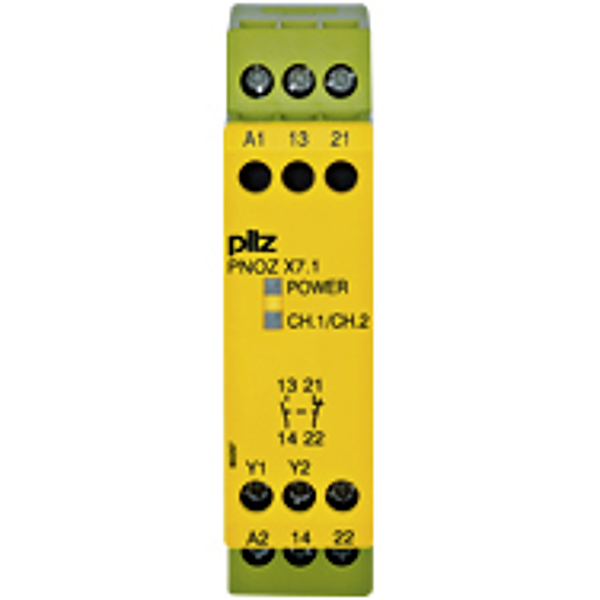

PNOZ X7.1 24VAC/DC 1n/o 1n/c
Safety relay (standalone) Inputs: Single-channel wiring Outputs: 1 N/O,. 1 N/C. Automatic/manual reset UB 24 V AC/DC, width: 22.5 mm, integral screw terminals, Monitoring E-STOP, safety gates.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous E-STOP monitoring, Limit switch, Safety gate monitor |
Operating modes:: | Single-channel, Automatic reset, Manual reset |
Product standard:: | EN 60947-5-1 |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | AC/DC |
Terminal style:: | fixed |
Terminal type:: | Screw terminal |
Number of instantaneous safety contacts:: | 1 |
Number of delayed safety contacts:: | 0 |
Number of auxiliary contacts:: | 1 |
Number of semiconductor outputs:: | 0 |
Stop category:: | 0 |
Max. current at DC13 I (6 cycles/min):: | 6.0 A |
Max. current at AC15:: | 5.0 A |
Width dimension:: | 22.5 mm |
Height dimension:: | 87.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 195 g |
Net weight:: | 185 g |
Ambient temperature:: | -10 - 55 °C |
