Product
Pilz
774050
PNOZ 15 24VDC 3n/o 1n/o 1n/c
Request a Quote

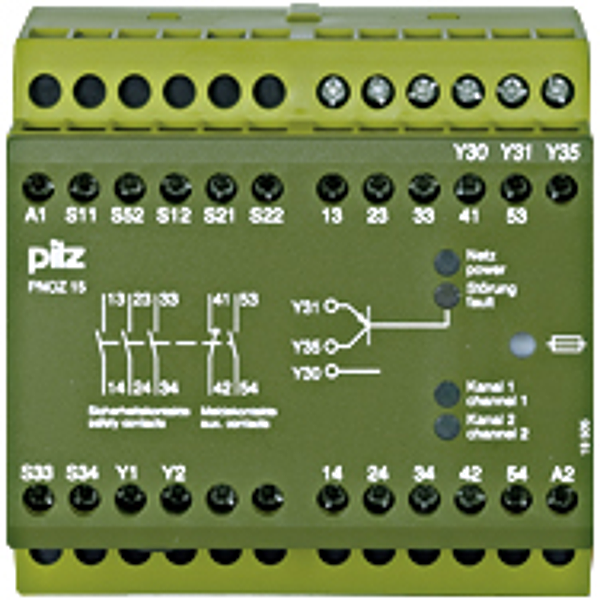

Image copyright: Pilz
Pilz 774050
PNOZ 15 24VDC 3n/o 1n/o 1n/c
Safety relay (standalone) Inputs: Single-channel wiring Outputs: 3 N/O,. 1 N/C, 1 N/O, 1 semiconductor. Automatic/manual reset UB 24 V DC,, width: 90 mm, integral screw terminals, Monitoring E-STOP,, safety gates.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, TÜV, CCC |
| Application options:: | Instantaneous E-STOP monitoring, Safety gate monitor |
| Operating modes:: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, without detection of shorts across contacts |
| Product standard:: | EN 60947-5-1 |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 3 |
| Number of delayed safety contacts:: | 0 |
| Number of auxiliary contacts:: | 1 |
| Number of semiconductor outputs:: | 1 |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 7.0 A |
| Max. current at AC15:: | 5.0 A |
| Width dimension:: | 90.0 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 475 g |
| Net weight:: | 465 g |
| Ambient temperature:: | -10 - 55 °C |
