774012

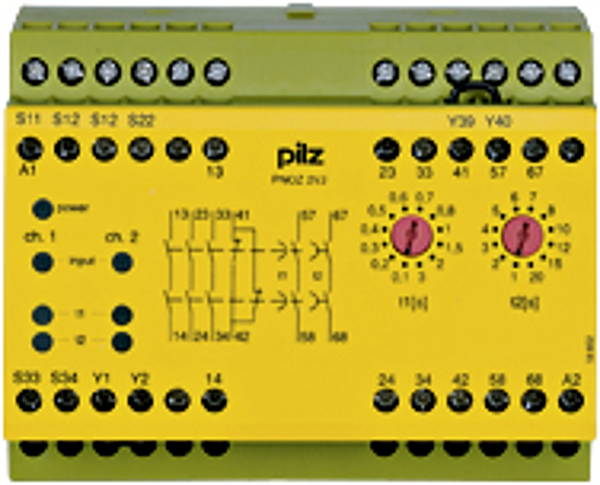

PNOZ 2VJ 24VDC 3n/o 1n/c 2n/o t
Safety relay (standalone) Inputs: 1-/2-channel wiring with/without, detection of shorts across contacts. Outputs: 3 N/O, 1 N/C, 2 N/O, delayed UB -24 V DC (Japan), width: 112.5 mm, integral screw terminals,. Monitoring E-STOP, safety gates with two freely selectable delay-on, de-energisation contacts, 12 stages from 0 - 20/0 - 3 s.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous E-STOP monitoring, Limit switch, Safety gate monitor, Delayed E-STOP monitoring |
Operating modes:: | Single-channel, Automatic reset, Dual-channel, Manual reset, without detection of shorts across contacts |
Product standard:: | EN 60947-5-1 |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Supply voltage (V):: | -24,0 |
Supply voltage type:: | DC |
Terminal style:: | fixed |
Terminal type:: | Screw terminal |
Number of instantaneous safety contacts:: | 3 |
Number of delayed safety contacts:: | 2 |
Safety contact delay type:: | Delay-on de-energisation |
Number of auxiliary contacts:: | 1 |
Number of semiconductor outputs:: | 0 |
Stop category:: | 0/1 |
Max. current at DC13 I (6 cycles/min):: | 7.0 A |
Max. current at AC15:: | 5.0 A |
Width dimension:: | 112.5 mm |
Height dimension:: | 87.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 615 g |
Net weight:: | 600 g |
Ambient temperature:: | -10 - 55 °C |
