773811

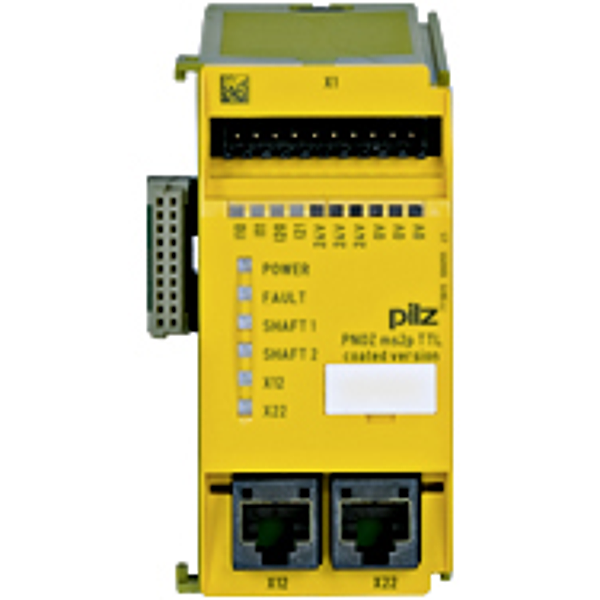

PNOZ ms2p TTL coated version
Configurable safety system PNOZmulti expansion module for extended, environmental conditions, safe monitoring of 2 axes.
Certifications:: | CE, cULus Listed, BG, EAC (Eurasian), TÜV, KOSHA, CCC |
Number of incremental encoder inputs:: | 2 |
Incremental encoder connection:: | RJ-45 socket, 8-pin |
Signal level range (Vss):: | 0,5 - 5,0 |
Version for extreme environ. conditions:: | Extended temperature range |
Width dimension:: | 45.0 mm |
Height dimension:: | 94.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 290 g |
Net weight:: | 220 g |
Ambient temperature:: | -25 - 60 °C |
