Product
Pilz
773126
PNOZ m3p ETH
Request a Quote
Image copyright: Pilz

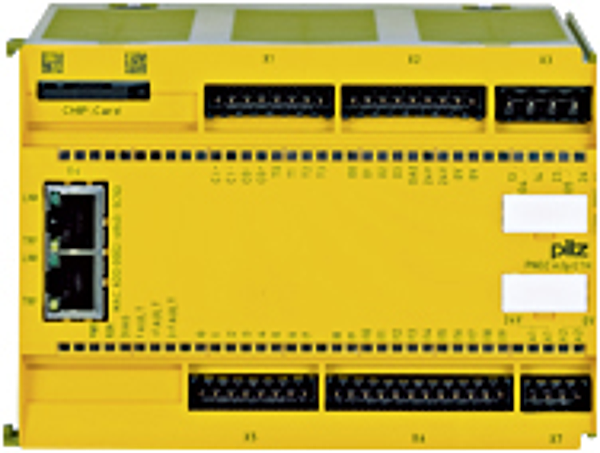

Pilz 773126
PNOZ m3p ETH
Configurable safety system PNOZmulti base module expandable, with, burner functionality, communication interface.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, BG, EAC (Eurasian), TÜV, CCC, KCC |
| Base unit:: | Yes |
| Number of digital inputs:: | 20 |
| Number of test pulse outputs:: | 4 |
| Number of relay outputs:: | 2 |
| Number of semiconductor outputs:: | 4 |
| Number of cascading outputs:: | 1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Permitted number of expansion modules:: | 8 |
| Number of Ethernet interfaces:: | 2 |
| Terminal type:: | Screw terminal, Spring-loaded terminal |
| Version for extreme environ. conditions:: | Standard |
| Width dimension:: | 135.0 mm |
| Height dimension:: | 94.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 540 g |
| Net weight:: | 520 g |
| Ambient temperature:: | 0 - 60 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
