Product
Pilz
761100
PMD s10 C 24-240VAC/DC UM100-550VAC/DC
Request a Quote

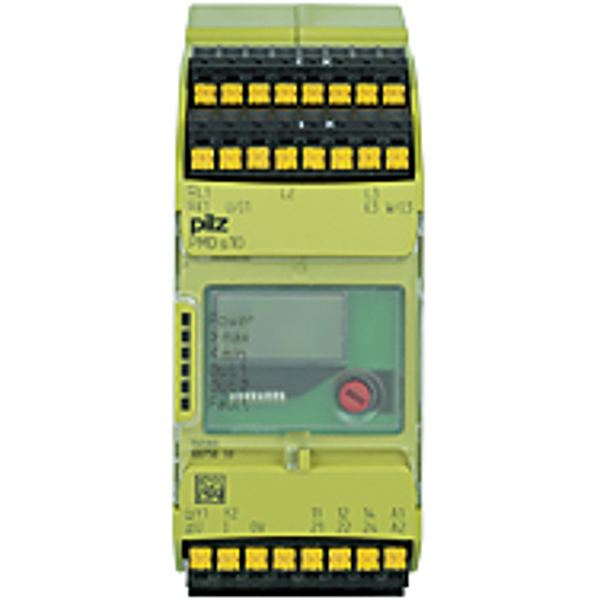

Image copyright: Pilz
Pilz 761100
PMD s10 C 24-240VAC/DC UM100-550VAC/DC
True power monitor in Sigma housing for monitoring Under and overload,, limit can be set via display, can be saved to chip card. Relay output:. 2 switch contacts. Analogue output: Current 4 - 20 mA and 0 - 10 V DC,, supply voltage: 24 - 240 V AC/DC, measuring voltage: 100 - 550 V AC,, measuring voltage: 1 - 12 A, set of connection terminals of spring, type.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed |
| Application options:: | True power measurement |
| Supply voltage (V):: | 24,0 - 240,0 |
| Supply voltage type:: | AC/DC |
| Measuring voltage:: | 100 - 550 |
| Measuring current:: | 1 - 12 |
| Protection type, housing:: | IP40 |
| Terminal type:: | Spring-loaded terminal |
| Terminal style:: | Plug-in |
| Operating modes:: | Normally de-energised mode, Fault non-latching, Fault latching, Normally energised mode, Automatic reset, Manual reset |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 100.0 mm |
| Depth dimension:: | 120.0 mm |
| Gross weight:: | 350 g |
| Net weight:: | 340 g |
| Ambient temperature:: | -10 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
