Product
Pilz
751601
PNOZ s60 C 100-240VACDC 3n/o 1n/c 6so
Request a Quote

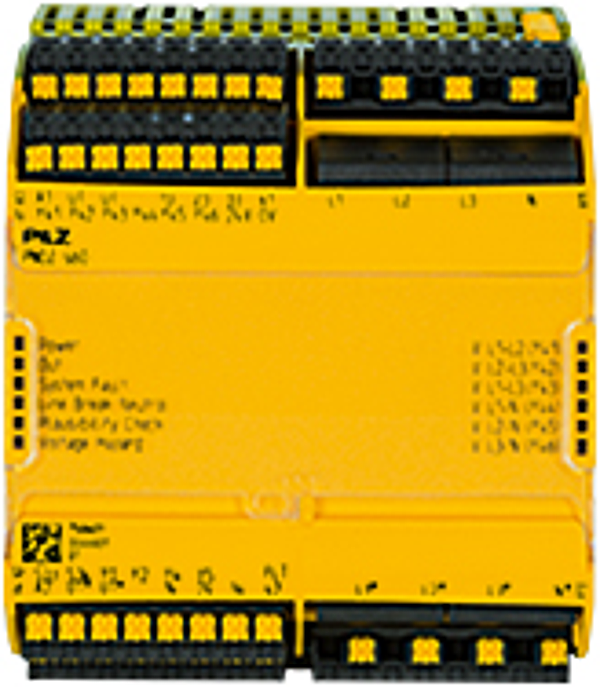

Image copyright: Pilz
Pilz 751601
PNOZ s60 C 100-240VACDC 3n/o 1n/c 6so
PNOZsigma voltage monitoring relay for applications up to PLe acc. EN ISO 13849-1 and SIL cl 3 acc. EN IEC 62061, UB = 100-240VACDC,. Outputs: 3 n/o, 1 n/c, 6 so, width: 90mm, plug-in spring-loaded, terminals, expandable with PNOZsigma contact expansions.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Application options:: | Safe voltage monitoring |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Operating modes:: | Automatic reset, Dual-channel, Manual reset, Self test |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, EN ISO 14119, VDE 0113-1 |
| Supply voltage type:: | AC/DC |
| Supply voltage (V):: | 100,0 - 240,0 |
| Max. current at DC13 I (6 cycles/min):: | 5.0 A |
| Max. current at AC15:: | 3.0 A |
| Measuring circuit frequency range:: | 50 - 60 |
| Terminal type:: | Spring-loaded terminal |
| Number of inputs:: | 6 |
| Number of instantaneous safety contacts:: | 3 |
| Number of delayed safety contacts:: | 0 |
| Height dimension:: | 98.0 mm |
| Width dimension:: | 90.0 mm |
| Depth dimension:: | 120.0 mm |
| Ambient temperature:: | -10 - 55 °C |
| Gross weight:: | 662 g |
| Net weight:: | 652 g |
