Product
Pilz
583002
PSENvip RL D M Set
Request a Quote
Image copyright: Pilz
Pilz 583002
PSENvip RL D M Set

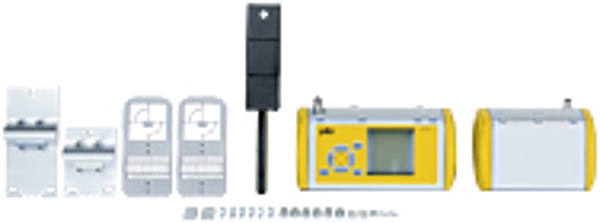

Complete set PSENvip, consisting of : PSENvip RL D M, PSENvip T,. PSENvip AP, PSENvip AT mag, PSENvip TP, PSENvip TN. With bending angle, measurement PL e, SIL 3. Approved in accordance with IEC 61496-1 and. EN 12622.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, TÜV |
| Operating range (m):: | 0,1 - 10,0 |
| Sensor principle:: | Optical |
| Resolution, protection type:: | Finger |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 7 |
| Blanking of safety zones:: | Fixed Blanking |
| Application in accordance with:: | EN 61496-1, EN 61496-2, IEC 61508, ISO 13849-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Protection type, housing:: | IP54 |
| Width dimension:: | 380.0 mm |
| Height dimension:: | 420.0 mm |
| Depth dimension:: | 230.0 mm |
| Gross weight:: | 7000 g |
| Net weight:: | 7000 g |
| Ambient temperature:: | 0 - 50 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
