Product
Pilz
570832
PSEN sg2c-5LPKLC-M12/5 unit
Request a Quote
Image copyright: Pilz

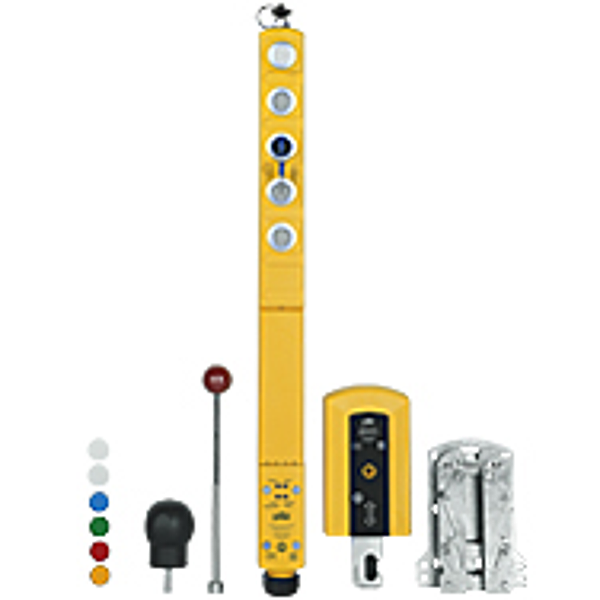

Pilz 570832
PSEN sg2c-5LPKLC-M12/5 unit
Safety gate system, safe interlock and safe guard locking device For, applications up to SIL CL 3 and PL e. Consisting of 5 pushbuttons: 1. Illuminated pushbutton for activating the safety gate; 2. Push switch, for accessing & interlocking the safety gate; 3. Key switch (3, positions) 4. Illuminated pushbutton; 5. Blind cover M12/5 connection, with enable switch Delivery scope: Sensing device with pushbuttons, incl. colour caps and Escape release bar and actuator for right or, left hinged gates.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, TÜV, FCC |
| Sensor principle:: | Transponder |
| Type of coding:: | Coded |
| Holding force:: | 2000 N |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 2 |
| Connection type:: | Federzugklemme steckbar |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 2.0 W |
| Number of pushbutton:: | 2 |
| Protection type, housing:: | IP54 |
| Number of control elements:: | 4 |
| Width dimension:: | 200.0 mm |
| Height dimension:: | 568.0 mm |
| Depth dimension:: | 108.0 mm |
| Gross weight:: | 3060 g |
| Net weight:: | 2690 g |
| Ambient temperature:: | -20 - 55 °C |
