Pilz
570825
PSEN sg2c-5LPKLE-M12/5 switch
Request a Quote

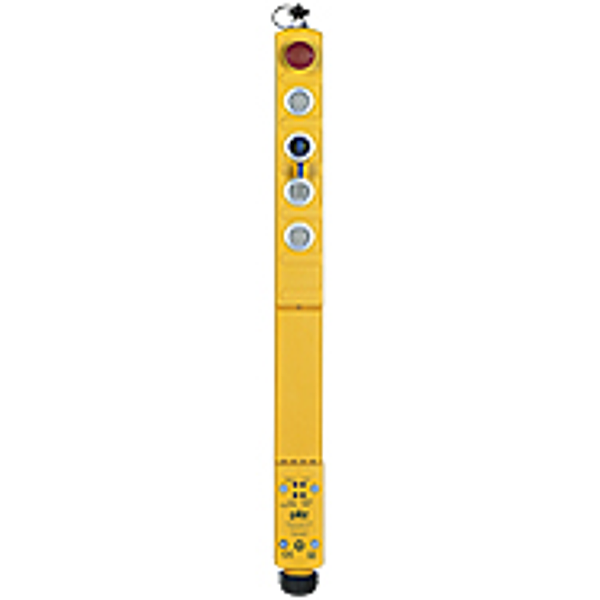

Image copyright: Pilz
Pilz 570825
PSEN sg2c-5LPKLE-M12/5 switch
Safety gate system, safe interlock and safe guard locking device For, applications up to SIL CL 3 and PL e. Consisting of 5 pushbuttons: 1. Illuminated pushbutton for activating the safety gate; 2. Push button, for accessing & interlocking the safety gate; 3. Key switch (3, positions) 4. Illuminated pushbutton; 5. E-STOP pushbutton M12/5, connection with enable switch Delivery scope: Sensing device with, pushbuttons (spare part).
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, TÜV, FCC |
| Sensor principle:: | Transponder |
| Type of coding:: | Coded |
| Holding force:: | 2000 N |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 2 |
| Connection type:: | Federzugklemme steckbar |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 2.0 W |
| Number of pushbutton:: | 2 |
| Protection type, housing:: | IP54 |
| Number of emergency stops:: | 1 |
| Number of control elements:: | 4 |
| Width dimension:: | 46.5 mm |
| Height dimension:: | 568.0 mm |
| Depth dimension:: | 74.5 mm |
| Gross weight:: | 1290 g |
| Net weight:: | 1200 g |
| Ambient temperature:: | -20 - 55 °C |
