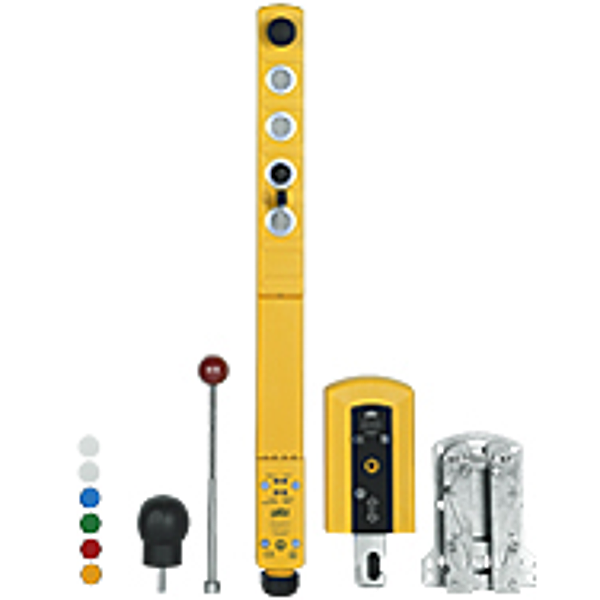

Pilz 570818
PSEN sg2c-5LBLLS unit
Safety gate system, safe interlock and safe guard locking device For, applications up to SIL CL 3 and PL e. Consisting of 5 pushbuttons: 1. Illuminated pushbutton for activating the safety gate; 2. Key button, for accessing & interlocking the safety gate; 3. Illuminated, pushbutton; 4. Illuminated pushbutton; 5. Section stop pushbutton. Delivery scope: Sensing device with pushbuttons incl. colour caps and. Escape release bar and actuator for right or left hinged gates.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, TÜV, FCC |
| Sensor principle:: | Transponder |
| Type of coding:: | Coded |
| Holding force:: | 2000 N |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 2 |
| Connection type:: | Federzugklemme steckbar |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 2.0 W |
| Number of pushbutton:: | 2 |
| Protection type, housing:: | IP54 |
| Number of control elements:: | 4 |
| Number of section stops:: | 1 |
| Width dimension:: | 200.0 mm |
| Height dimension:: | 555.0 mm |
| Depth dimension:: | 108.0 mm |
| Gross weight:: | 3050 g |
| Net weight:: | 2670 g |
| Ambient temperature:: | -20 - 55 °C |
