570812

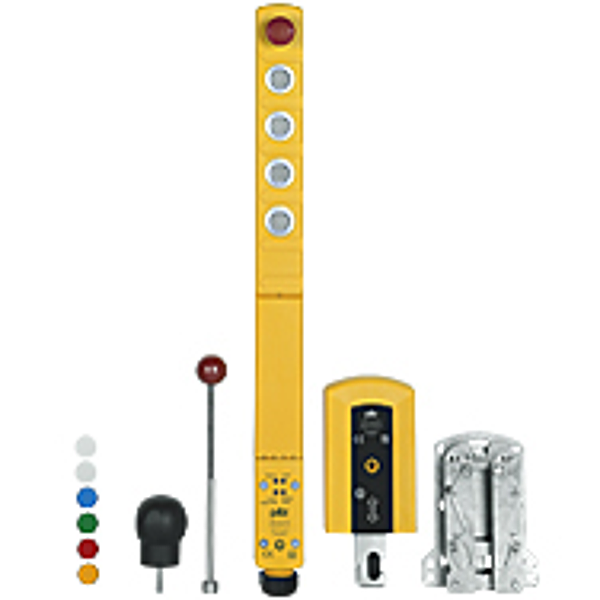

PSEN sg2c-5LPLLE unit
Safety gate system, safe interlock and safe guard locking device For, applications up to SIL CL 3 and PL e. Consisting of 5 pushbuttons: 1. Illuminated pushbutton for activating the safety gate; 2. Pushbutton, for accessing & interlocking the safety gate; 3. Illuminated, pushbutton; 4. Illuminated pushbutton; 5. E-STOP pushbutton Delivery, scope: Sensing device with pushbuttons incl. colour caps and Escape, release bar and actuator for right or left.
Certifications:: | CE, cULus Listed, TÜV, FCC |
Sensor principle:: | Transponder |
Type of coding:: | Coded |
Holding force:: | 2000 N |
Number of OSSD outputs:: | 2 |
Number of inputs:: | 2 |
Connection type:: | Federzugklemme steckbar |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Power consumption DC:: | 2.0 W |
Number of pushbutton:: | 2 |
Protection type, housing:: | IP54 |
Number of emergency stops:: | 1 |
Number of control elements:: | 4 |
Width dimension:: | 200.0 mm |
Height dimension:: | 555.0 mm |
Depth dimension:: | 108.0 mm |
Gross weight:: | 3050 g |
Net weight:: | 2670 g |
Ambient temperature:: | -20 - 55 °C |
