570620

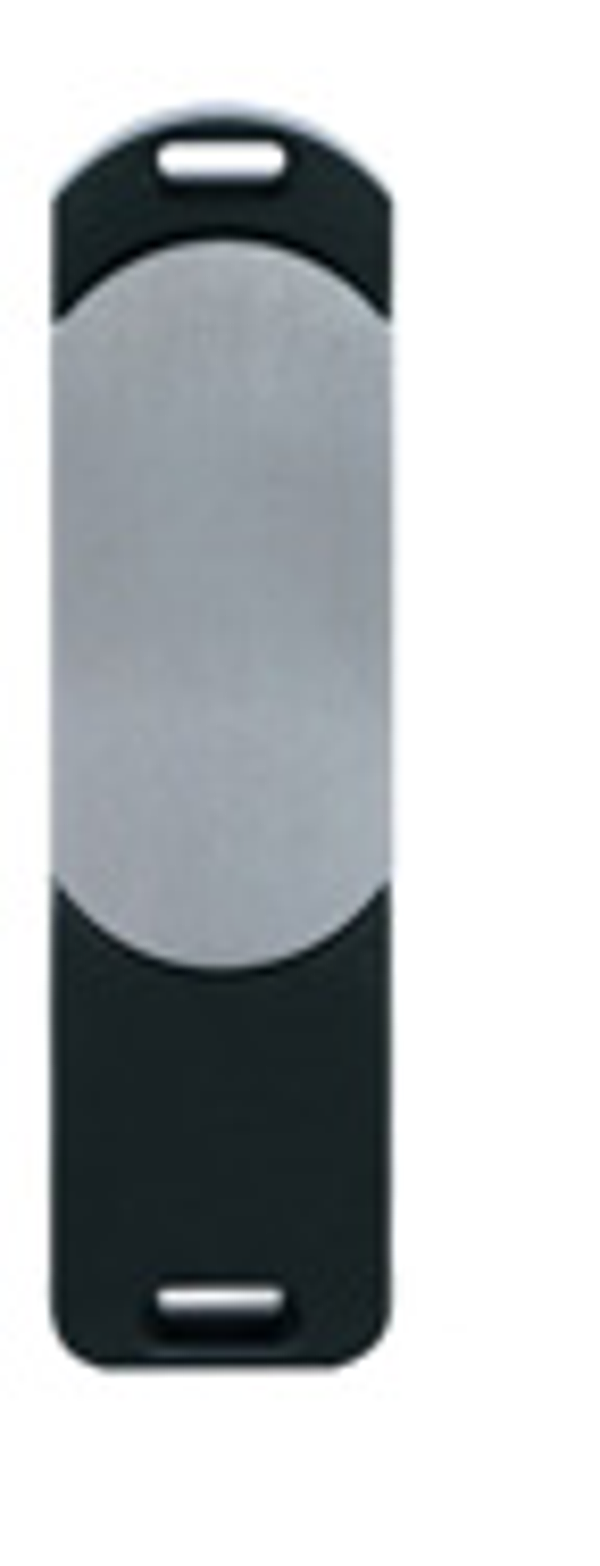

PSEN sl-1.0 1.1 1actuator
Magnetic safety gate system For applications up to SIL 3/PL e/cat. 4, magnetic holding force 1000 N (process protection). Coding: coded; 4. LEDs. Delivery scope: 1 actuator.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, FCC, IC |
Sensor principle:: | Transponder |
Type of coding:: | Coded |
Protection type, housing:: | IP67 |
Housing material:: | Anticorodal, hard anodised |
Width dimension:: | 52.0 mm |
Height dimension:: | 188.0 mm |
Depth dimension:: | 22.0 mm |
Gross weight:: | 680 g |
Net weight:: | 600 g |
Ambient temperature:: | -25 - 55 °C |
