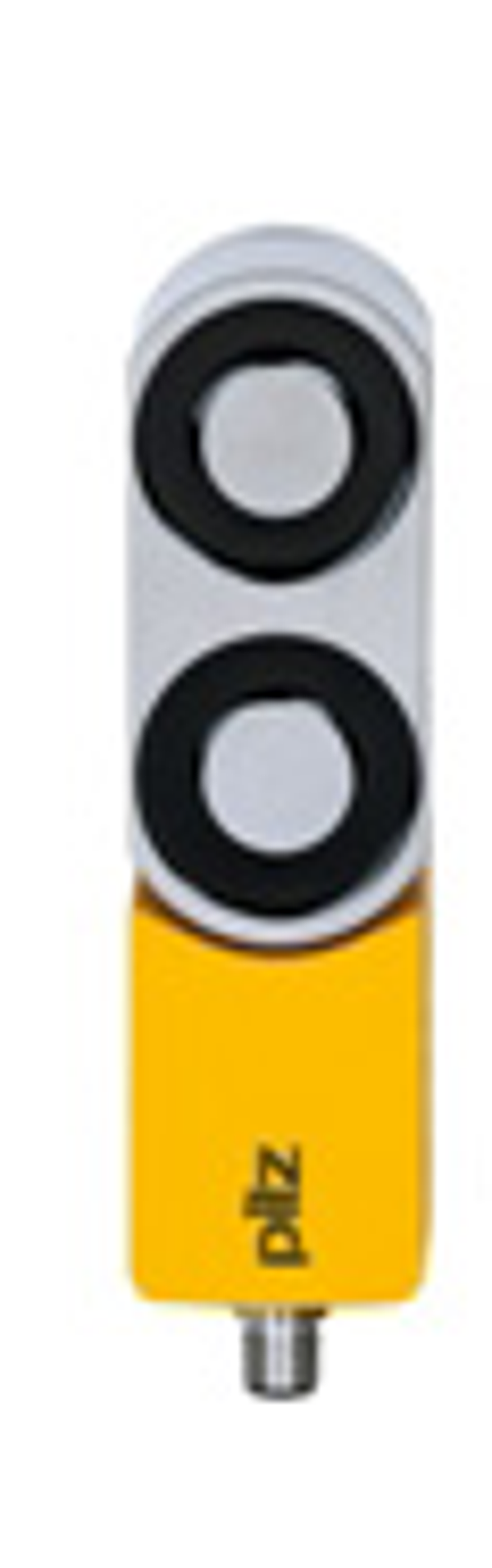

Pilz 570614
PSEN sl-1.0n 2.1 1switch
Magnetic safety gate system For applications up to SIL 3/PL e/cat. 4, magnetic holding force 1000 N (process protection). Coding: fully, coded; 5-pin M12 male connector; 4 LEDs. Delivery scope: 1 sensor, without actuator.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Assured release distance:: | 15.0 mm |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, FCC, IC |
| Sensor principle:: | Transponder |
| Type of coding:: | Fully coded |
| Holding force:: | 1000 N |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 1 |
| Connection type:: | M12, 5pol. male |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 7.2 W |
| Protection type, housing:: | IP67 |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 172.0 mm |
| Depth dimension:: | 44.0 mm |
| Gross weight:: | 1190 g |
| Net weight:: | 1120 g |
| Ambient temperature:: | -25 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
