570250

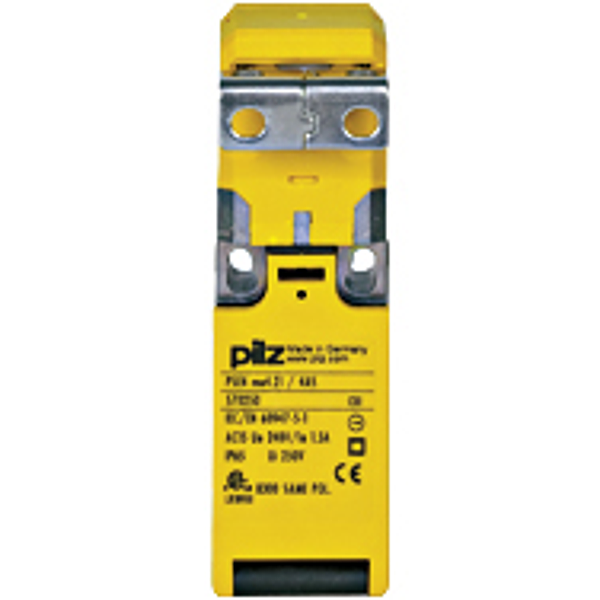

PSEN me4.21 / 4AS
Mechanical safety switch with standard actuator Extraction force 50 N. Contacts 1 N/O, 2 N/C.
Certifications:: | CE, EAC (Eurasian), TÜV, cCSAus |
Extraction force:: | 50 N |
Actuator:: | Standard |
Number of N/O:: | 1 |
Number of N/C:: | 2 |
Max. current at AC1:: | 5.0 A |
Voltage at AC1:: | 240 V |
Max. current at AC15:: | 1.5 A |
Voltage at AC15:: | 240 V |
Protection type, housing:: | IP65 |
Width dimension:: | 30.0 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 30.5 mm |
Gross weight:: | 147 g |
Net weight:: | 102 g |
Ambient temperature:: | -30 - 80 °C |
