Product
Pilz
570212
PSEN me3 / 2AR
Request a Quote
Image copyright: Pilz

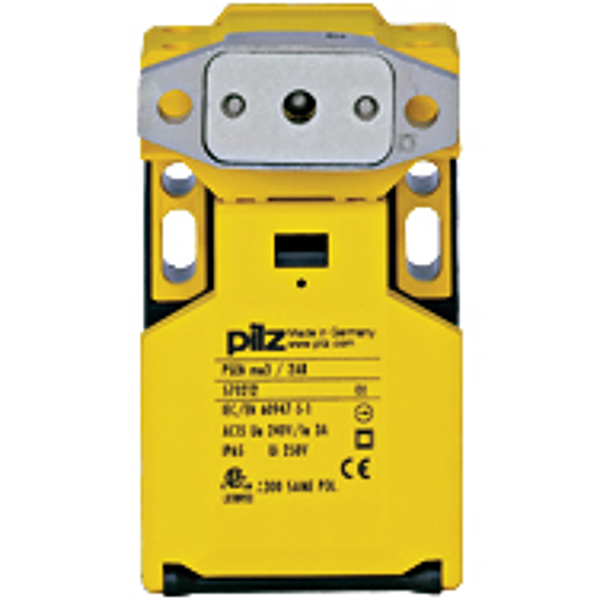

Pilz 570212
PSEN me3 / 2AR
Mechanical safety switch with radius actuator Contacts 1 N/O, 1 N/C.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, EAC (Eurasian), TÜV, cCSAus |
| Extraction force:: | 10 N |
| Actuator:: | Radius |
| Number of N/O:: | 1 |
| Number of N/C:: | 1 |
| Max. current at AC1:: | 10.0 A |
| Voltage at AC1:: | 240 V |
| Max. current at AC15:: | 3.0 A |
| Voltage at AC15:: | 240 V |
| Protection type, housing:: | IP65 |
| Width dimension:: | 52.0 mm |
| Height dimension:: | 90.0 mm |
| Depth dimension:: | 33.0 mm |
| Gross weight:: | 238 g |
| Net weight:: | 175 g |
| Ambient temperature:: | -30 - 80 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
