Product
Pilz
570005
PSEN me1M / 1AR
Request a Quote
Image copyright: Pilz

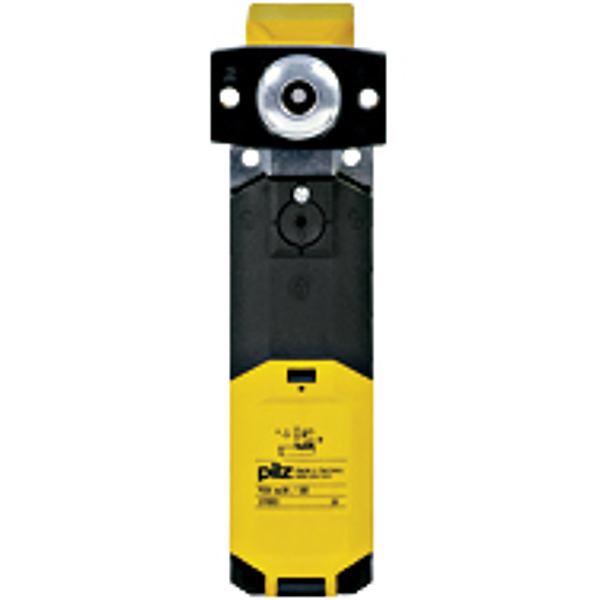

Pilz 570005
PSEN me1M / 1AR
Mechanical safety switch with radius actuator Interlock principle, magnetic force Contacts 2 N/O, 2 N/C Supply voltage 24 V AC/DC.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, BG, EAC (Eurasian), CCC, cCSAus |
| Type of guard locking:: | Magnetic force |
| Extraction force:: | 27 N |
| Latching force:: | 1500 N |
| Auxiliary release:: | No |
| Actuator:: | Radius |
| Number of N/O:: | 2 |
| Number of N/C:: | 2 |
| Voltage at AC1:: | 240 V |
| Max. current at AC1:: | 2.5 A |
| Voltage at AC15:: | 230 V |
| Max. current at AC15:: | 2.5 A |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | AC/DC |
| Power consumption AC:: | 4.4 VA |
| Power consumption DC:: | 4.4 W |
| Protection type, housing:: | IP67 |
| Width dimension:: | 42.5 mm |
| Height dimension:: | 184.0 mm |
| Depth dimension:: | 51.0 mm |
| Gross weight:: | 524 g |
| Net weight:: | 341 g |
| Ambient temperature:: | -25 - 70 °C |
