541053

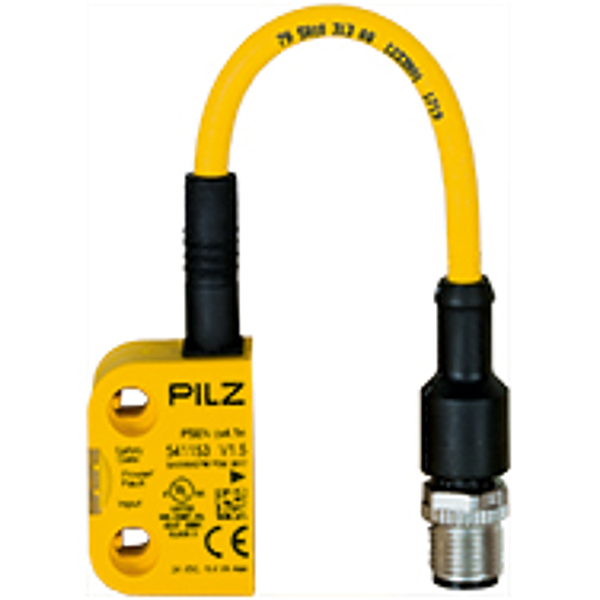

PSEN cs3.1n 1switch
RFiD safety switch 2 safe semiconductor outputs, 5-pin M12 connector,, one direction of actuation IP67; operating distance 11 mm, Sao = 8 mm,. Sar = 20 mm; PU = 1 piece coded switch (without actuator).
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, FCC, IC |
Sensor principle:: | Transponder |
Type of coding:: | Coded |
Number of OSSD outputs:: | 2 |
Connection type:: | M12, 5pol. male |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Power consumption DC:: | 1.0 W |
Assured switching distance:: | 8.0 mm |
Assured release distance:: | 20.0 mm |
Protection type, housing:: | IP6K9K |
Width dimension:: | 26.0 mm |
Height dimension:: | 37.0 mm |
Depth dimension:: | 18.0 mm |
Gross weight:: | 54 g |
Net weight:: | 38 g |
Ambient temperature:: | -25 - 70 °C |
